4 Port Poe Injector 10/100/1000mbps
4-Port PoE Injector
4-Port POE Adapter Injector Advantages
-
· Supply power to HD network surveillance cameras with Cat5e (PoE)
· 8x 10/100M RJ45 ports; 1x AC input port; 4x PoE Ports
· AC input: 90V~264V
· Compatible with IEEE 802.3af standard(15.4W) , IEEE 802.3at standard(25.4W)
· Coming with the Ethernet network port and PoE output port, and the power input port with lighting-proof function (meet the secondary lightning protection)
· Can supply power with the spare line pair(4/5 (+), 7/8 (-) method or the data line pair 1/2(+), 3/6(-) method
· No fan, natural heat dissipation, small, quiet design, suitable for desktop or wall
· Automatic Detection and Protection of Non–standard Ethernet Terminals
4-Port POE Adapter Injector Technical Indexes
| Parameter | Specifications |
| Features |
Conforms to IEEE802.3af standard RJ-45 Conforms to IEEE802.3af standard RJ-45 |
|
Data Input Interface 4*RJ-45 10/100Base-TX/ Data Input Interface 4*RJ-45 10/100/1000Base-TX |
|
| Output Port Power Cable Included | |
| Data Rate |
10/100Mbps 10/100/1000Mbps |
| Input Power | 90-240V AC ,50-60Hz |
| Output Power |
4*15.4W Max IEEE802.3af 4*30W Max IEEE802.3at |
| Wiring | Data provide over pairs 1/2(+) and 3/6(-) |
| Power over spare pairs 4/5(+) and 7/8(-) | |
| LED Display | YES |
| Operating Temperature | 0 to +40°C, |
| Humidity | Max. 95% RH(non-condensing) |
| Dimension | 280X186X44(H×D×W) |
| Weight | 2.08KG |

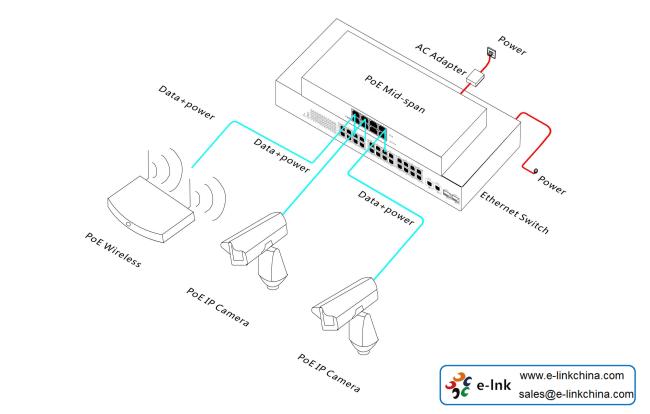

4-Port POE Adapter Injector Application
4-Port POE Adapter Injector Ordering Information
| Model | Decription |
| LNK-POE304 | 4-port PoE Adapter, 10/100/1000Mbps, IEEE 802.3af 15.4W |
