Commercial 2 Port 10/100/1000M 802.3at Gigabit PoE Injector Adapter
Product Description:

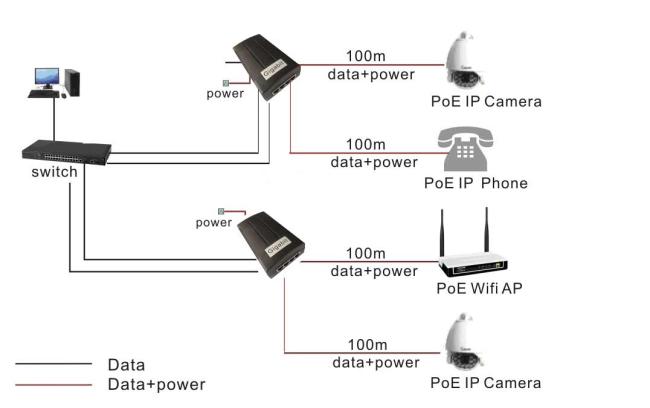

The LNK-POE202/LNK-POE302 Power over Ethernet (PoE) adapter is specifically designed to provide operational power to surveillance cameras and wireless LAN devices such as access points, bridges and routers.
By using this electrical device, a power current can easily travel through an Ethernet network cable, allowing people to conveniently connect a wireless LAN device without connecting any extra power supply lines.
This PoE adapter integrates power and data channels onto a single cable; therefore, the necessity for additional power lines has already been eliminated, and the installation costs, as well as manpower, have been reduced greatly.
Features:
This system provides a safe, reliable, and cost-effective power solution to WLAN Access Points, with IEEE802.3af/IEEE802.3at compliant up to 15.4W/25.5W of PoE power. With the process of automatic detection and protection of non–standard Ethernet terminals, there’s no configuration required and the installation cost is effectively reduced.
It is designed to support both 10/100M or 10/100/1000M LAN environment, ensuring a great networking experience.
Technical Parameters:
| Parameter | Specifications |
| Features |
• Conforms to IEEE802.3af standard RJ-45 • Conforms to IEEE802.3af standard RJ-45 |
|
• Data Input Interface RJ-45 10/100Base-TX/ • Data Input Interface RJ-45 10/100/1000Base-TX |
|
| • Output Port Power Cable Included | |
| Data Rate |
10/100Mbps 10/100/1000Mbps |
| Input Power | AC100-240V |
| Output Power |
15.4W Max IEEE802.3af 30W Max IEEE802.3at |
| Wiring | • Data provide over pairs 1/2(+) and 3/6(-) |
| • Power over spare pairs 4/5(+) and 7/8(-) | |
| Output type |
Single outputa 2*RJ45 connector ---POE 2*RJ45 connector ----LAN |
| LED Display | YES |
| Operating Temperature | 0 to +40°C, |
| Humidity | Max. 95% RH(non-condensing) |
| Dimension | 170*98*42mm (H×D×W) |
| Weight | 250g |
Support and Services:
We are committed to providing our customers with superior technical support and service for PoE Injector Adapter. Our experienced technical support team is available to answer your questions and help you troubleshoot any issues you may have with the product. We also offer a comprehensive warranty to cover any manufacturing defects or other issues that may arise during the life of your product. Our commitment to quality and customer service ensures that you can purchase our PoE Injector Adapter with confidence.
Packing and Shipping:
Packaging and Shipping for PoE Injector Adapter:
The PoE Injector Adapter will be packaged in a box measuring 14 x 10 x 8 inches. The box will be padded on the inside to ensure that the Adapter is not damaged while in transit. A packing slip will also be included in the box that contains the order information, the item description, and the customer’s address.
The Adapter will be shipped via FedEx, with a tracking number and insurance. A signature will be required upon delivery.
Ordering Information:
| Model | Decription |
| LNK-POE202 | 2-Port PoE Adapter, 10/100Mbps, IEEE 802.3af 15.4W |
| LNK-POE202AT | 2-Port PoE Adapter, 10/100Mbps, IEEE 802.3at 30W |
| LNK-POE302 | 2-Port PoE Adapter, 10/100/1000Mbps, IEEE 802.3af 15.4W |
| LNK-POE302AT | 2-Port PoE Adapter, 10/100/1000Mbps, IEEE 802.3at 30W |
