16 Ports 10 / 100Base-T + 4 Ports 1000 Base SFP Industrial Ethernet Switch

Price Negotiable

Price: $29.9-389

MOQ: 1pcs

Delivery Time: 5-8work

Brand: E-link

Product Description

16-port 10/100Base-T + 4-port 1000Base SFP Industrial Ethernet Switch

Advanteges

 16x10/100Base-TX ports and 4x1000Base-FX

ports

 10/100M auto-negotiation, Full/Half duplex mode,

auto-MDI-MDI-X

 SFP Fiber Port can be SMF, MMF

 Super lightening protection, IP40 protection

 Excellent heat elimination without cooling fan

 Redundant dual DC power inputs

 -40℃-80℃ operating temperature range

Overview

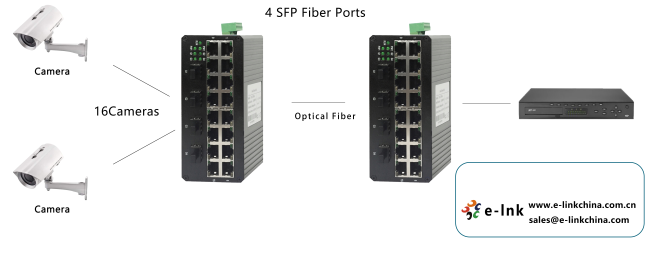

LNK-GY416-SFP Series Hardened Industrial Ethernet Switch is specially designed for industrial application,

which provides fast and stable media conversion between 16x10/100BaseT(X) and 4x1000BaseFX. It also meets

the requirements of long distance, high speed, and wide broadcast.

With wide range operation temperature, alloy aluminum shell and other excellent industrial-grade design against

vibration and shock, it could keep your industrial automation applications running continuously in different harsh

environments.

Technical Indexes

Parameter	Specifications
Standard	IEEE 802.3 for 10Base-T, IEEE 802.3u for 100Base-TX and 100Base-FX, IEEE 802.3x for Flow control
Switch Properties	MAC Table Size: 2K Packet Buffer Size: 1Mbit Processing Type: Store and Forward Exchange Properties: 148800pps (100M)
RJ45 port rate	16 x RJ45 Ports: 10/100BaseT(X) auto connection, Full/Half duplex or force work mode, and support MDI/MDI-X connection
Fiber Ports	4 x 1000BASE-SFP ports
Transmission	Twisted pair: 100m (Standard CAT5/CAT5e cable) Fiber: Depends on SFP
Power Input options	Input Voltage: 24VDC(18~36V DC), Redundant dual inputs Opposite connection protection
Environmental Limits	Operating Temperature: -40℃ to +80℃ Storage Temperature: -45℃ to +85℃ Relative Humidity: 5% to 95% (non-condensing)
Mechanical Dimension	Dimensions:138 x 112 x 60 mm (LxWxH) House Protection: IP40 protection, Aluminium Alloy Installation: DIN-Rail or wall mounting Weight: 670g
Approvals	EMI: FCC Part 15 Subpart B Class A, EN 55022 Class A EMS: • EN61000-4-2 (ESD),Level 3 • EN61000-4-3 (RS),Level 3 • EN61000-4-4 (EFT),Level 3 • EN61000-4-5 (Surge),Level 3 • EN61000-4-6 (CS),Level 3 • EN61000-4-8,Level 3 Shock: IEC 60068-2-27 Free Fall: IEC 60068-2-32 Vibration: IEC 60068-2-6
