Industrial 2.5G 95W 802.3bt PoE++ Injector 12-48V DC with power booster function
Industrial 2.5G 95W 802.3bt PoE++ Injector (12~48VDC) with power booster function
12~48VDC Power Input Industrial 2.5G 90W PoE++ Injector Advantages
► 1 RJ45 Ethernet Data Input Port + 1 RJ45 Power over Ethernet Output Port (Data + Power)
► Support 95W LTPoE++ Power Sourcing Equipment
► Complies with IEEE 802.3at/bt PoE end-span/mid-span PSE
► Support 10/100/1000/2.5G Base-TX
► Extensive LED indicators for PoE diagnostics
► 12~48V DC wide range power input with power booster function
► Up to 95-watt PoE budget (48VDC), 95-watt PoE budget (24VDC), 60-watt PoE budget (12VDC)
► Supports DIN-Rail and Wall-mount installation
► Environmentally Hardened -40°C to 80°C (-40°F to 176°F) operating temperature
Overview
The LNK-INJ401-90 product is an Industrial hardened 2.5G single-port PoE+ IEEE 802.3bt / LTPoE++
95W 10/100/1000/2.5G Base-TX PoE Injector with 12~48V DC Input and Voltage Booster. It allows you
to connect the PoE device such as camera and access point with a non PoE LAN switch within the
distance of 100m. Both the Ethernet port (to switch) and the PoE Out port (to PoE device) support 10/100
/1000/2.5G Base-T and are compliant with IEEE 802.3ab. It provides 95W PoE output.
Technical Indexes
| Ethernet | |
| Standards: | 10/100/1000/2.5G BASE-T Ethernet |
| Processing Type: | Forward |
| Half-duplex, Full-duplex | |
| Forward Filter Rate: | 3,720,000pps (2.5Gbps) |
| Cabling: | 10/100/1000/2.5G BASE-T: CAT6 or above |
| Maximum Distance: | CAT6A UTP up to 100m |
| Connector: | 2x RJ45 |
| Environmental | |
| Operating Temperature: | -40°C to 80°C (-40°F to 176°F) |
| Storage Temperature: | -40°C to 85°C (-40°F to 185°F) |
| Relative Humidity: | 5% to 95% non-condensing |
| MTBF: | >200,000hrs |
| Electrical and Mechanical | |
| Input Power: | 12~48VDC (Terminal Block) |
| Power Consumption: | 100W Max. |

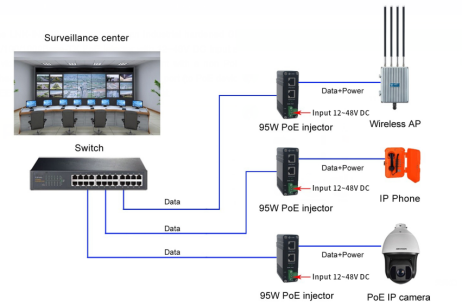

Application
Ordering Information
| Model | Description |
| LNK-INJ401-90 |
2.5G Hardened 1-port Ethernet Input + 1-port 95W PoE++ Output Injector with 12~48VDC wide range power input |
| Mounting Options | ► Default DIN-Rail Bracket installed; Wall Mount Bracket is included. |
| Power Options | ► 120W/2.5A 48VDC Power Supply. Open Wire for Terminal Block |
| ► Power Supply is to be purchased separately. |
