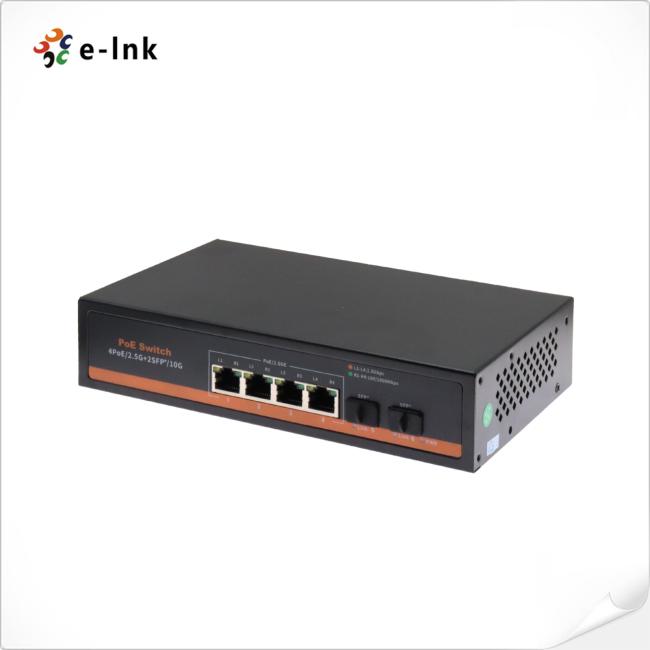

4x2.5Gbps RJ45 Ports + 2 x10G SFP+ Fiber Ports Ethernet Switch
4x2.5Gbps RJ45 Ports + 2 x10G SFP+ Fiber Ports Ethernet Switch
Model : LNK-2.5G-204P
Overview
LNK-2.5G-204 Series Ethernet Switch provides 4 x 2.5G ports and 2 x 10Gigabit SFP+ optical ports,
which can directly enjoy 2.5G high-speed transmission when connected with various 2.5G devices.
It adopts the store-and-forward mechanism and integrates high-capacity cache internally, effectively
reducing the data forwarding delay, and all ports can realize non-blocking line-speed forwarding.
Features
· 4 x 2.5Gbps RJ45 Ports
· 2 x 10G SFP+ Fiber Ports
Technical Indexes
| Standards | IEEE802.3, IEEE802.3u, IEEE802.3x, IEEE802.3ab, IEEE802.3bz |
| PoE Ethernet Port |
Connector: RJ45 Data rate: 100M/1G/2.5G Cable: CAT6 or higher Distance: ≤100 meter Standards: IEEE802.3af/at Power: Each port≤30W, all ports 75W Max PoE Output: DC 52V±5% PoE Power Pin: 1/2+,3/6- |
| Fiber Port |
Connector: SFP+ Data rate: 10G Wavelength: 850nm/1310nm/1490nm/1550nm Fiber type: Single Mode 9/125μm, Multi Mode 50/125μm,62.5/125μm Distance: 550m ~ 100km |
| Backplane bandwidth | 60Gbps |
| Forwarding method |
10Base-tx: 14880pps/port; 100BASE-tx:148800pps/port 1000BASE-tx: 1488000pps/port 10000BASE-tx: 14880000pps/port |
| MAC address table | 4K |
| Port function | power supply priority mechanism, fast and forwarding, MAC automatic learning and aging IEEE802.3X Full Duplex Flow Control and Backpressure Half Duplex Flow Control |
| Packet forwarding rate | 44.64Mpps |
| Power | 110-240V AC |
| Power consumption | 5W |
| Operation Temperature | -10℃ to 55℃ |
| Storage Temperature | -40℃ to 85℃ |
| Relative Humidity | 10% to 90% (non-condensation) |
| Size | 200 x 118 x 44mm |
| Weight | 0.7KG |
| Material | Metal |
Ordering Information
| Model | Description |
| LNK-2.5G-204P | 4x2.5Gbps PoE Ports + 2 x10G SFP+ Fiber Ports PoE Switch |
