LED Screen Fiber Converter With 1x10G SC Fiber Port + 4 X 10/100/1000M Ethernet RJ45 Ports
LED Screen Fiber Converter with 1x10G SC Fiber Port + 4 x 10/100/1000M Ethernet RJ45 Ports

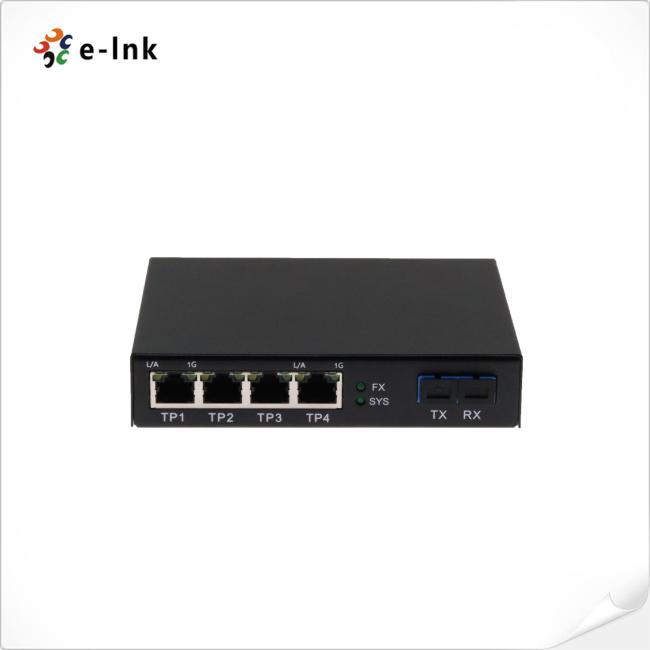

Model : LNK-LED104G
Overview
The E-link LNK-LED104G fiber converter offers a cost-effective way to convert optical signals to electrical
signals, or electrical signals to optical signals, for connecting the sending card to the LED display.
Delivering a full-duplex, efficient and stable data transmission that is not easily interfered with,
this converter is ideal for long-distance transmission.
Features
· 1 x 10G SC duplex optical port, single mode 10KM distance
· 4 x Gigabit Ethernet ports
· supports RJ45 ports 10/100/1000M and Full Duplex/Half Duplex auto-negotiation
· Not support VLAN
Technical Indexes
| Connector Type |
1 x 10G SC duplex port 4 x Gigabit Ethernet RJ45 ports |
| Distance | Single mode fiber 10km |
| Resolution | 1920*1080@60Hz |
| Compatible brand | NovaStar, Colorlight |
| Connection method |
Used in pairs, each ports must be connected accordingly, Such as Device A’s Port-1 must link to Device B’s Port-1 |
| Power Supply | Power input: 5-12V DC |
| Working Environment |
Operating Temperature: 0℃ ~ 55℃; Storage Temperature: -40℃ ~ 75℃; Operating Humidity: Max 90%, non-condensing Storage Humidity: Max 95%, non-condensing |
| MTBF | 100,000 hours |
| Dimensions | 130 x 105 x 28mm |
| Weight | 350g |

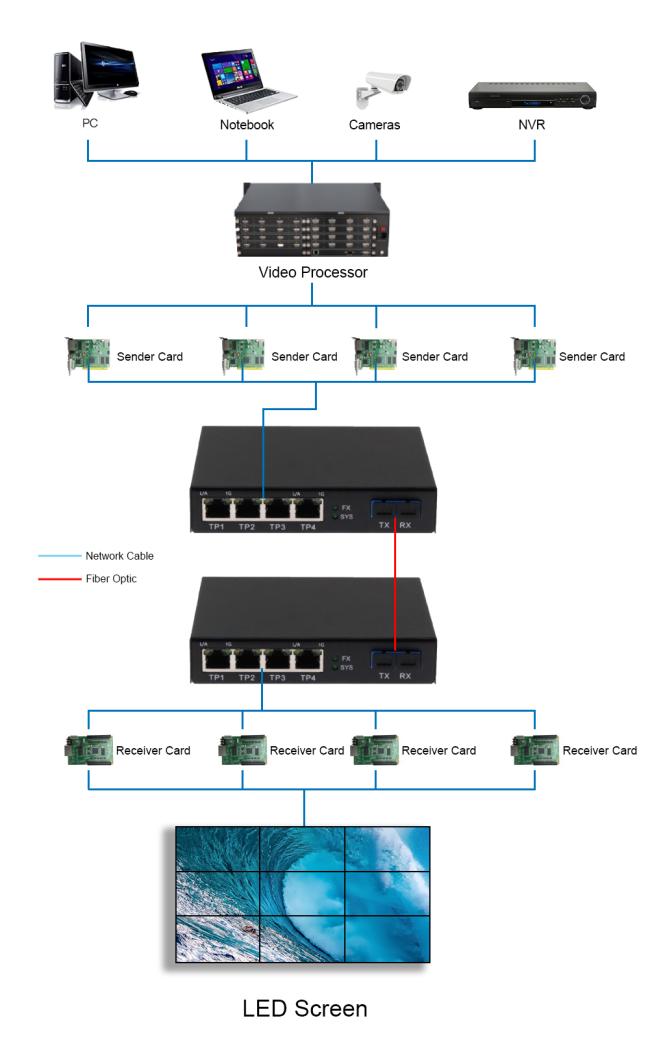

Application
Ordering Information
| Model | Description |
| LNK-LED104G | LED Screen Fiber Converter with 1x10G SC Fiber Port + 4 x 10/100/1000M Ethernet RJ45 Ports, single mode fiber 10km. |
