Mini Industrial Managed 8-Port 10/100/1000T + 2-Port 100/1000X SFP Ethernet Switch
Mini Industrial Managed 8-Port 10/100/1000T + 2-Port 100/1000X SFP Ethernet Switch
Mini Industrial Managed Switch Advantages
► 8x10/100/1000Base-TX + 2x100/1000Base-X SFP
► 10/100/1000Mbps RJ45 Port Supports Full/Half-duplex, Auto-negotiation, Auto MDI/MDIX
► IEEE 802.3az Energy Efficient Ethernet (EEE)
► Supports DIN-Rail installation
► -40°C to 80°C (-40°F to 176°F) operating temperature.
Mini Industrial Managed Switch Technical Indexes
| Interface | |
| Connector: | 8 x RJ45 |
| Optical Port: | 2 x 100/1000Base-X SFP |
| Environmental | |
| Operating Temperature: | -40°C to 80°C (-40°F to 176°F) |
| Storage Temperature: | -40°C to 85°C (-40°F to 185°F) |
| Relative Humidity: | 5% to 95% non-condensing |
| MTBF | > 200,000 hrs |
| Electrical and Mechanical | |
| Input Power: | 12~48VDC, Redundant Power (4-pin Terminal Block) |
| Power Consumption: | 5W Max. |
| Protection: | |
| Power Input Overload: | Automatic Resettable |
| Reverse Polarity: | Present |
| LED Indicators: | |
| PWR: | Power Status |
| Ethernet (Per Port): | Link/Activity |
| Fiber: | Gigabit SFP Port: F9~F10 |
| Dimensions (WxDxH): | 95 x 88 x 46 mm |
| Weight: | 300g |
| Casing: | Aluminum Case |
| Mounting Options: | DIN-Rail mount |
Overview
LNK-IMC208SG-SFP, managed industrial network switch, with 8 ports 10/100/1000Base-TX + 2 port 100/1000Base-X SFP.
The switch provides 8 port RJ45 Ethernet ports. The 2-port 100/1000Base-X SFP supports 1 or 2 core Single-mode or
Multi-mode fiber. With its reliable design and ease of use, the product is a great choice for integrating networks consisting
of network devices such as IP cameras and wireless access points between remote locations.

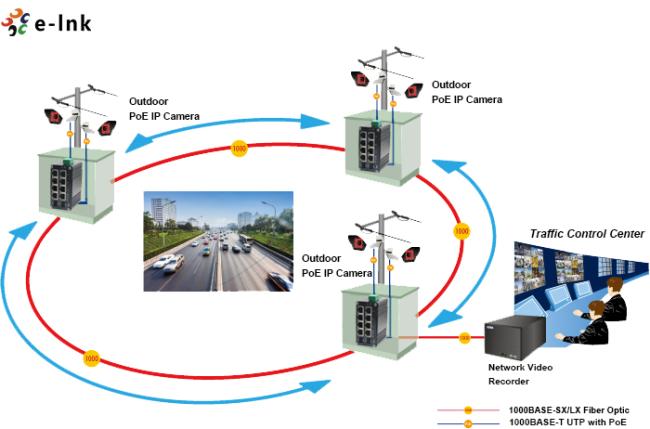

Application
Ordering Information
| Model | Description |
| LNK-IMC208SG-SFP | Mini Industrial Managed 8-Port 10/100/1000T + 2-Port 100/1000X SFP Ethernet Switch |
| SFP Options | ► SFP option. Please select your SFP on our SFP Options Page |
| ► SFP module is to be purchased separately. | |
| Mounting Options | ► Default DIN-Rail Bracket installed; Wall Mount Bracket is included. |
| Power Options | ►24W/1A 24VDC DIN-Rail Power Supply. Open Wire for Terminal Block. |
| ► Power Supply is to be purchased separately. |
