Industrial L2+ 8-Port 10/100/1000T + 6-Port 1000X SFP Managed Ethernet Switch
Industrial L2+ 8-Port 10/100/1000T + 6-Port 1000X SFP Managed Ethernet Switch
Industrial Ethernet Switch Advantages
► Support 8x10/100/1000Base-T + 6x1000Base-X SFP
► 10/100/1000Mbps RJ45 Port supports Full/Half-duplex, Auto-negotiation, Auto MDI/MDIX
► IEEE 802.3az Energy Efficient Ethernet (EEE)
► IP40 Aluminum Case
► Supports DIN-Rail installation
Technial Indexes
|
Interface |
||||
|
Connector: |
8 x RJ45 |
|||
|
RS485: |
1 x RS485 (Optional) |
|||
|
Optical Port: |
6 x 1000Base-X SFP |
|||
|
USB-C: |
1 x USB-C (for Management) |
|||
|
RS485 Serial Interface (Optional) |
||||
|
Physical interface |
Industrial standard 3-pin screw terminal |
|||
|
Data type |
1Ch RS485 Bi-Direction |
|||
|
RS-485 signals |
Data+, Data-, GND |
|||
|
Serial port line distance (copper) |
1000 meters |
|||
|
Baud rate |
0 ~ 800kbps |
|||
|
Environmental |
||||
|
Operating Temperature: |
-40°C to 80°C (-40°F to 176°F) |
|||
|
Storage Temperature: |
-40°C to 85°C (-40°F to 185°F) |
|||
|
Relative Humidity: |
5% to 95% non-condensing |
|||
|
MTBF |
> 200,000 hrs |
|||
Overview
ETH-IMC608M series is the L2+ managed 8-port 10/100/1000Base-T + 6-port 1000Base-X SFP hardened Ethernet
switch. The switch has 8 TP ports and 6 fiber ports. The TP (RJ45) supports 10/100/1000Base-T(X), Full/Half duplex
mode, and auto MDI/MDI-X connection; the 1000Base-X SFP port supports 1 or 2 core Single-mode or Multi-mode fiber.
With its reliable design and ease of use, the product is a great choice for integrating networks consisting of network
devices such as IP cameras and wireless access points between remote locations.

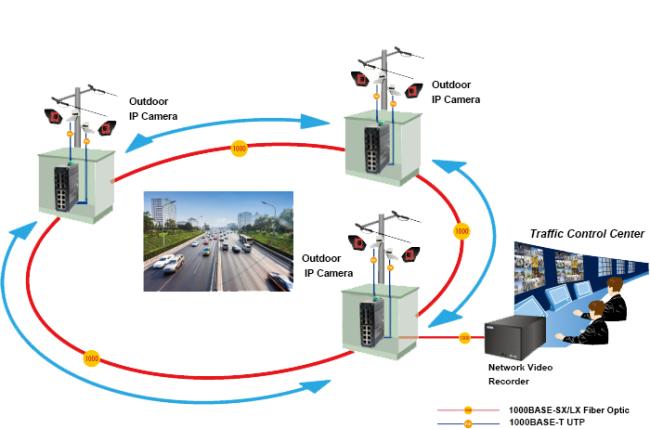

Appliation
Ordering Information
| Model | Description |
| ETH-IMC608M | Industrial L2+ 8-Port 10/100/1000T + 6-Port 1000X SFP Managed Ethernet Switch |
| SFP Options | ► SFP option. Please select your SFP on our SFP Options Page |
| ► SFP module is to be purchased separately. | |
| Mounting Options | ► Default DIN-Rail Bracket installed |
| Power Options | ► DIN-Rail Power Supply. Open Wire for Terminal Block. |
| ► Power Supply is to be purchased separately. |
