Industrial L2+ 8-Port 10/100/1000T 802.3at PoE + 4-Port 1G SFP + 2-Port 10G SFP+ Managed Ethernet Switch
Industrial L2+ 8-Port 10/100/1000T 802.3at PoE + 4-Port 1G SFP + 2-Port 10G SFP+ Managed Ethernet Switch
Industrial PoE Switch Advantages
► Support 8x10/100/1000Base-T 802.3at PoE + 4x1000Base-X SFP + 2x 10GBase-SR/LR SFP+
► 10/100/1000Mbps RJ45 Port supports Full/Half-duplex, Auto-negotiation, Auto MDI/MDIX
► IEEE802.3af/at compliant
► 9K Bytes Jumbo Frame
► IEEE 802.3az Energy Efficient Ethernet (EEE)
► IP40 Aluminum Case
► Supports DIN-Rail installation
Industrial PoE Switch Technical Indexes
| RS485 Serial Interface (Optional) | ||||
| Physical interface | Industrial standard 3-pin screw terminal | |||
| Data type | 1Ch RS485 Bi-Direction | |||
| RS-485 signals | Data+, Data-, GND | |||
| Serial port line distance (copper) | 1000 meters | |||
| Baud rate | 0 ~ 800kbps | |||
| PoE (Power over Ethernet) | ||||
| Standard: | IEEE 802.3at Power over Ethernet Plus | |||
| IEEE 802.3af Power over Ethernet | ||||
| Port: | RJ45 | |||
| Power Pin Assignment | 4/5(+), 7/8(-) | |||
| PoE Budget: | Up to 240-watt PoE budget | |||
| Environmental | ||||
| Operating Temperature: | -40°C to 80°C (-40°F to 176°F) | |||
| Storage Temperature: | -40°C to 85°C (-40°F to 185°F) | |||
| Relative Humidity: | 5% to 95% non-condensing | |||
| MTBF | > 200,000 hrs | |||
| Electrical and Mechanical | ||||
| Input Power: | 48~57VDC, Redundant Power (6-pin Terminal Block) | |||
| Power Consumption: | 8W Max.(PoE in Use<240W) | |||
| Protection: | ||||
| Power Input Overload: | Automatic Resettable | |||
Overview
ETH-IMC2408MP Series is the L2+ managed 8-port 10/100/1000Base-T 802.3at PoE + 4-port 1000Base-X SFP
+ 2-port 10G Base-SR/LR SFP+ hardened Ethernet switch. The Switch has 8 TP ports and 6 fiber ports. TP (RJ45)
supports 10/100/1000Base-T(X), Full/Half duplex mode, and auto MDI/MDI-X connection; the 1000Base-X SFP and
10G SFP+ support 1 or 2 core Single-mode or Multi-mode fiber.

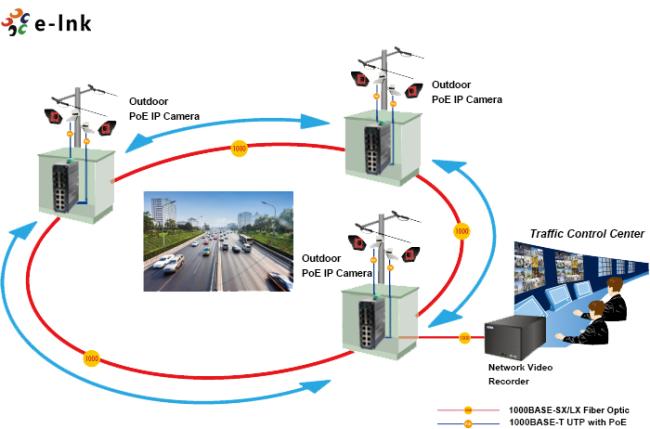

Application
Ordering Information
| Model | Description |
| ETH-IMC2408MP | Industrial L2+ 8-Port 10/100/1000T 802.3at PoE + 4-Port 1G SFP + 2-Port 10G SFP+ Managed Ethernet Switch |
| SFP Options | ► SFP option. Please select your SFP on our SFP Options Page |
| ► SFP module is to be purchased separately. | |
| Mounting Options | ► Default DIN-Rail Bracket installed |
| Power Options | ► DIN-Rail Power Supply. Open Wire for Terminal Block. |
| ► Power Supply is to be purchased separately. |
