Industrial L2+ Rackmount 24-Port 10/100/1000T 802.3at PoE + 4-Port 1000X SFP Managed Ethernet Switch
Price:
$29.9-389
MOQ:
1pcs
Delivery Time:
5-15 working days
Brand:
E-link
Product Description
Industrial PoE Switch Advantages
► Support 24x10/100/1000Base-T + 4x1000Base-X SFP + 1xRS485
► 10/100/1000Mbps RJ45 Port supports Full/Half-duplex, Auto-negotiation, Auto MDI/MDIX
► IEEE802.3af/at compliant
► DIP Switch supports one-key VLAN, one-key Ring Management, PoE Reset and 250m PoE Network
► Support connecting USB-C port for easy management, without the need to access the RS232 serial port at all
► 10K Bytes Jumbo Frame
► IP40 Aluminum Case
► Supports 1U 19” Rackmount installation
Technical Indexes
| Interface | ||||
| Connector: | 24 x RJ45 | |||
| RS485: | 1 x RS485 (Optional) | |||
| Optical Port: | 4 x 1000Base-X SFP | |||
| USB-C: | 1 x USB-C (for Management) | |||
| RS485 Serial Interface (Optional) | ||||
| Physical interface | Industrial standard 3-pin screw terminal | |||
| Data type | 1Ch RS485 Bi-Direction | |||
| RS-485 signals | Data+, Data-, GND | |||
| Serial port line distance (copper) | 1000 meters | |||
| Baud rate | 0 ~ 800kbps | |||
| PoE (Power over Ethernet) | ||||
| Standard: | IEEE 802.3at Power over Ethernet Plus | |||
| IEEE 802.3af Power over Ethernet | ||||
| Port: | RJ45 | |||
| Power Pin Assignment | 4/5(+), 7/8 | |||
Overview
ETH-IMC2424MP Series is the L2+ managed rackmount 24-port 10/100/1000Base-T 802.3at PoE + 4-port 1000Base-X SFP
hardened Ethernet switch. The Switch has 24 TP ports and 4 fiber ports. The TP (RJ45) supports 10/100/1000Base-T(X),
Full/Half duplex mode, and auto MDI/MDI-X connection; the 1000Base-X SFP port supports 1 or 2 core Single-mode or
Multi-mode fiber.

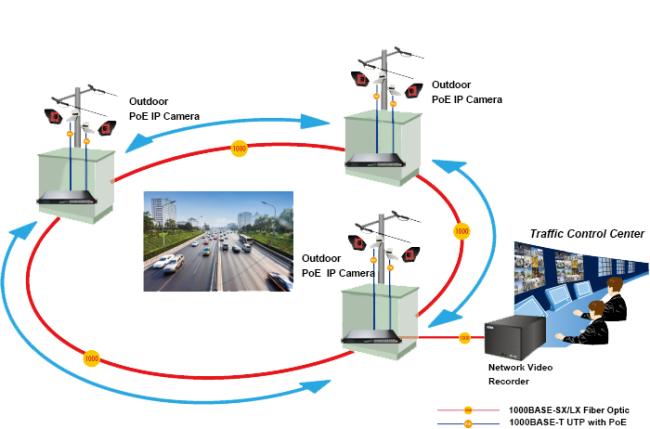

Application
Ordering Information
| Model | Description |
| ETH-IMC2424MP | Industrial L2+ Rackmount 24-Port 10/100/1000T 802.3at PoE + 4-Port 1000X SFP Managed Ethernet Switch |
| SFP Options | ► SFP option. Please select your SFP on our SFP Options Page |
| ► SFP module is to be purchased separately. | |
| Mounting Options | ► Rackmount Installation |
| Power Options | ► Industrial Power Supply. Open Wire for Terminal Block. |
| ► Power Supply is to be purchased separately. |
