Managed Industrial PoE Switch 8-Port 10/100/1000T+ 2-Port 1000X SFP
Industrial L2+ 8-Port 10/100/1000T 802.3at PoE + 2-Port 1000X SFP Managed Ethernet Switch
Advantages
► Support 8x10/100/1000Base-T + 2x1000Base-X SFP
► 10/100/1000Mbps RJ45 Port supports Full/Half-duplex, Auto-negotiation, Auto MDI/MDIX
► IEEE802.3af/at compliant
► DIP Switch supports one-key VLAN, one-key Ring Management, PoE Reset and 250m PoE Network
► 9K Bytes Jumbo Frame
► IP40 Aluminum Case
Technical Indexes
| Interface | ||||
| Connector: | 8 x RJ45 | |||
| RS485: | 1 x RS485 (Optional) | |||
| Optical Port: | 2 x 1000Base-X SFP | |||
| USB-C: | 1 x USB-C (for Management) | |||
| RS485 Serial Interface (Optional) | ||||
| Physical interface | Industrial standard 3-pin screw terminal | |||
| Data type | 1Ch RS485 Bi-Direction | |||
| RS-485 signals | Data +, Data-, GND | |||
| Serial port line distance (copper) | 1000 meters | |||
| Baud rate | 0 ~ 800kbps | |||
| PoE (Power over Ethernet) | ||||
| Standard: | IEEE 802.3at Power over Ethernet Plus | |||
| IEEE 802.3af Power over Ethernet | ||||
| Port: | RJ45 | |||
| Power Pin Assignment | 4/5(+), 7/8(-) | |||
| PoE Budget: | Up to 240-watt PoE budget | |||
Overview
ETH-IMC208MP series is the L2+ managed 8-port 10/100/1000Base-T 802.3at PoE + 2-port 1000Base-X SFP hardened
Ethernet switch. The Switch has 8 TP ports and 2 fiber ports. The TP (RJ45) supports 10/100/1000Base-T(X), Full/Half duplex
mode, and auto MDI/MDI-X connection; 1000Base-X SFP port supports 1 or 2 core Single-mode or Multi-mode fiber. With its

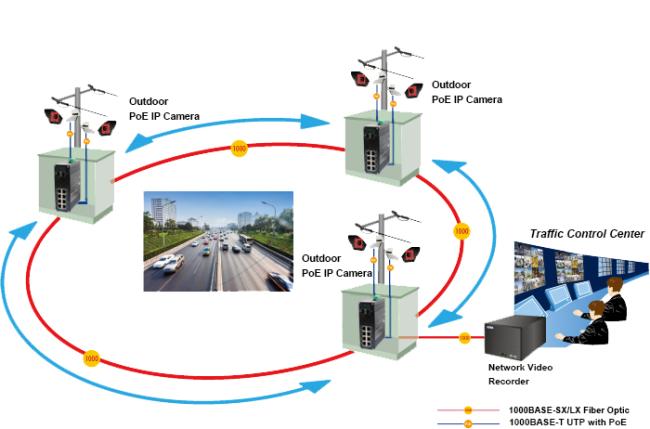

reliable design and ease of use, the product is a great choice for integrating networks consisting of network devices such as
IP cameras and wireless access points between remote locations.
Ordering Information
| Model | Description |
| ETH-IMC208MP | Industrial L2+ 8-Port 10/100/1000T 802.3at PoE + 2-Port 1000X SFP Managed Ethernet Switch |
| SFP Options | ► SFP option. Please select your SFP on our SFP Options Page |
| ► SFP module is to be purchased separately. | |
| Mounting Options | ► Default DIN-Rail Bracket installed |
| Power Options | ► DIN-Rail Power Supply. Open Wire for Terminal Block. |
| ► Power Supply is to be purchased separately. |
