Mini Industrial 10G/5G/2.5G/1G/100M Copper to 10GBASE-X SFP+ Media Converter
Mini Industrial 10G/5G/2.5G/1G/100M Copper to 10GBASE-X SFP+ Media Converter
Fiber Media Converter Advantages
► 100/1G/2.5G/5G/10G BASE-T RJ45 interface with auto MDI/MDI-X function, 10GBASE-X SFP+ slot interface
► IEEE 802.3u/802.3ab/802.3bz/802.3ae Ethernet standard compliant
► Supports auto-negotiation 100Mbps, 1Gbps half/full duplex and 2.5/5/10Gbps full duplex mode
► IEEE 802.3az Energy Efficient Ethernet (EEE) compliant
► Extensive LED indicators for network diagnostics
Technical Indexes
| Ethernet | ||||
| Standards: | IEEE 802.3u 100BASE-TX | |||
| IEEE 802.3ab 1000BASE-T | ||||
| IEEE 802.3bz 2.5G/5GBASE-T | ||||
| IEEE 802.3an 10GBASE-T | ||||
| IEEE 802.3ae 10Gbps Ethernet | ||||
| IEEE 802.3x full-duplex flow control | ||||
| IEEE 802.3az Energy Efficient Ethernet (EEE) | ||||
| Forward & Filtering Rate: | 100Mbps | |||
| 1000Mbps | ||||
| 2.5Gbps | ||||
| 5Gbps | ||||
| 10Gbps | ||||
| Processing Type: | Store-and-Forward | |||
| Fabric: | 20Gbps | |||
| Jumbo Frame: | 16K | |||
| Address Table: | 9K entries, automatic source address learning and aging | |||
| Interface | ||||
| Connector: | 1 x RJ45 | |||
| Optical Port: | 1 x SFP+ | |||
Overview
LNK-IMC10G-SFP+ is the smallest Industrial-grade 10G Ethernet Media Converter providing non-blocking wire-speed performance
and great flexibility for 10 Gigabit Ethernet extension in harsh industrial environment. It is equipped with one 100Mbps, 1Gbps, 2.5Gbps,
5Gbps and 10GBASE-T RJ45 copper interface and one 10GBASE-X SFP+ fiber optic interface delivered in an IP40 rugged but compact-

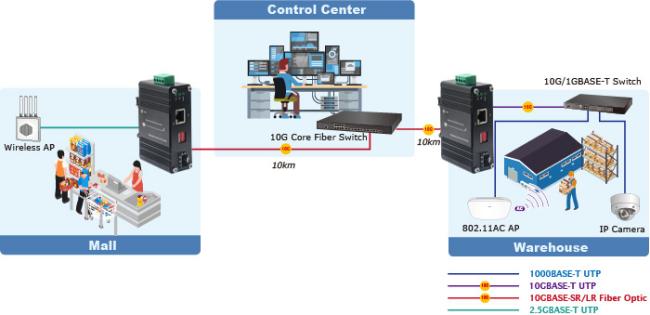

sized case with redundant power system. The LNK-IMC10G-SFP+ is ideal for wide applications from copper to fiber media conversion
wherever 10Gigabit bandwidth is required in climatically demanding environments with wide temperature ranging from -40 to 80°C
Ordering Information
| Model | Description |
| LNK-IMC10G-SFP+ | Mini Industrial 10G/5G/2.5G/1G/100M Copper to 10GBASE-X SFP+ Media Converter |
| SFP Options | ► SFP+ option. Please select your SFP+ on our SFP+ Options Page (Industrial SFP). |
| ► SFP+ module is to be purchased separately. | |
| Mounting Options | ► Default DIN-Rail Bracket installed; Wall Mount Bracket is included. |
| Power Options | ► 24W/1A 24VDC Power Supply. Open Wire for Terminal Block |
| ► Default DIN-Rail Bracket installed; Wall Mount Bracket is included. | |
| ► Power Supply is to be purchased separately. |
