Industrial 4-Port 10/100/1000T 802.3bt 90W PoE + 1-Port 10/100/1000T + 2-Port 100/1000X SFP Gigabit Ethernet Switch
Industrial PoE Switch Advantages
► 5 10/100/1000BASE-T Gigabit Ethernet RJ45 copper ports
► 2 SFP slots, supporting 1000BASE-X and 100BASE-FX transceiver in dual modes
► Complies with IEEE 802.3bt PoE Standard
► Up to 4 ports of IEEE 802.3bt/at/af devices powered
► Up to 360-watt PoE budget
► Supports PoE power up to 95 watts for each PoE port
Technical Indexes
| PoE (Power over Ethernet) | |
| Standard: | IEEE802.3af/at/bt |
| Port: | RJ45 |
| Power Pin Assignment: | Pair 1 End-span: 1/2(-), 3/6(+) |
| PoE Budget: | Up to 360-watt PoE budget |
| Environmental | |
| Operating Temperature: | -40°C to 80°C (-40°F to 176°F) |
| Storage Temperature: | -40°C to 85°C (-40°F to 185°F) |
| Relative Humidity: | 5% to 95% non-condensing |
| MTBF | > 200,000 hrs |
| Electrical and Mechanical | |
| Input Power: | 48~57VDC (Terminal Block) |
| Power Consumption: | 382W Max. (PoE in use) |
| <5W (PoE not in use) | |
| Power Input Overload: | Automatic Resettable |
Overview

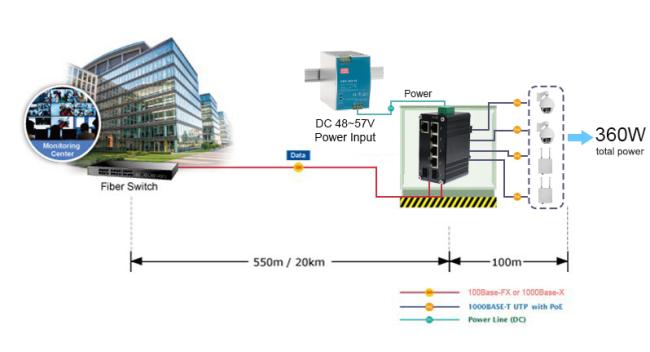

E-link LNK-IMC205GHP-SFP Series is a Mini Industrial High Power 90W 802.3bt PoE Switch with 4*10/100/1000T Ethernet
ports that support IEEE802.3at/af/bt for a maximum of 90W/port, 1*10/100/1000T Gigabit Ethernet port, and 2*100/1000 dual
rate SFP slots for fiber connection.LNK-IMC205GHP-SFP adopts the IEEE 802.bt PoE++ standard and PoH technology, it is
capable to source up to 95 watts of power by using all the four pairs of standard Cat5e/6 Ethernet cabling to deliver power
and full-speed data to each remote PoE compliant powered device (PD). It possesses triple amount of power capability than
the conventional 802.3at PoE+ and is an ideal solution to satisfy the growing demand for higher power consuming network PDs.
Ordering Information
| Model | Description |
| LNK-IMC205GHP-SFP | Industrial 4-Port 10/100/1000T 802.3bt 90W PoE + 1-Port 10/100/1000T + 2-Port 100/1000X SFP Gigabit Ethernet Switch |
| SFP Options | ► SFP option. Please select your SFP on our SFP Options Page (Industrial SFP). |
| ► SFP module is to be purchased separately. | |
| Mounting Options | ► Default DIN-Rail Bracket installed; |
| Power Options | ► 480W/10A 48VDC DIN-Rail Power Supply. Open Wire for Terminal Block. |
| ► Power Supply is to be purchased separately |
