Industrial 1G/10G SFP+ to SFP+ OEO Converter (3R Repeater) with 1G Ethernet Media Converter Function
Industrial 1G/10G SFP+ to SFP+ OEO Converter (3R Repeater) with 1G Ethernet Media Converter Function
Fiber Media Converter Advantages
► 3R function (Regeneration, Reshaping, Re-timing)
► Support hot plugging, full state led display, easy installation
► Support ITUT prescribed DWDM/CWDM wavelength, and can also display it’s DDM function
► DIP Switch supports 1.25G/10G fiber data rate switching

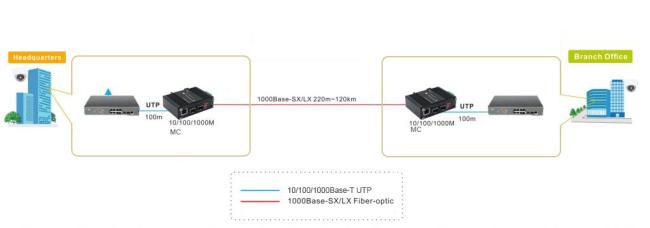

► Can be as 1G Ethernet Media Converter if using Ethernet
Technical Indexes
| Performance Data | Technical Indexes | |||
| Equipment function | 3R Repeater | |||
| Transmission Speed | 10G: 8.5Gb/s-11.7Gb/s | |||
| Protocols |
8.5G Fiber Channel SONET OC-192, SDH STM-64 (9.95Gbps) 10G WAN (10Gbps) 10G LAN (10.31Gbps) OTN OTU-2 (G.709) (10.70Gbps) 10G LAN with 255/237 FEC coding (11.09Gbps) 10G Fiber Channel (11.32Gbps) 10G POS |
|||
| Interface Type | SFP+ to SFP+ | |||
| Transmission Distance | SFP+ module: up to 80km | |||
|
Maximum Packet Forwarding Rate |
14,880,950/S | |||
| Operating Temperature | -40°C to 80°C (-40°F to 176°F) | |||
| Storage Temperature | -40°C to 85°C (-40°F to 185°F) | |||
| Relative Humidity | 5% to 95% non-condensing | |||
| MTBF | > 200,000 hrs | |||
Overview
ETH-IMC2402-OEO series Industrial 10G OEO Converter is a connection between fiber to fiber 10Gbps equipment function
as fiber media converter, or as fiber repeater for long distance transmission in harsh environment at operating temperature -40~ 80℃.
Ordering Information
| Model | Description |
| ETH-IMC2402-OEO | Industrial 1G/10G SFP+ to SFP+ OEO Converter (3R Repeater) with 1G Ethernet Media Converter Function |
| SFP Options | ► SFP option. Please select your SFP on our SFP Options Page |
| ► SFP module is to be purchased separately. | |
| Mounting Options | ► Default DIN-Rail Bracket installed |
| Power Options | ► DIN-Rail Power Supply. Open Wire for Terminal Block. |
| ► Power Supply is to be purchased separately. |
