Mini Industrial 8-Port 10/100/1000T 802.3at PoE + 2-Port 10/100/1000T Compact Ethernet Switch
Industrial PoE Switch Advantages
► 10 10/100/1000BASE-T Gigabit Ethernet RJ45 copper ports
► Up to 8 ports of IEEE 802.3af/at devices powered
► Up to 240-watt PoE budget
► 48~57V DC redundant power with reverse polarity protection
► Industry standard design, dustproof and close design IP40, rugged high-strength metal case
Technical Indexes
| Ethernet | |
| Standards: | IEEE 802.3 Ethernet |
| IEEE 802.3u Fast Ethernet | |
| IEEE 802.3ab Gigabit Ethernet | |
| IEEE 802.3x Full-Duplex Flow Control | |
| IEEE 802.3az Energy Efficient Ethernet (EEE) | |
| Forward & Filtering Rate: | 14,880pps (10Mbps) |
| 148,800pps (100Mbps) | |
| 1,488,000pps (1000Mbps) | |
| Packet Buffer: | 2Mbits |
| Packet Length: | 9216bytes |
| MAC Address Table: | 4K entries |
| Switch Fabric: | 20Gbps/non-blocking |
| Switch Throughput (packet per second) | 14.88Mpps@64bytes |
Overview

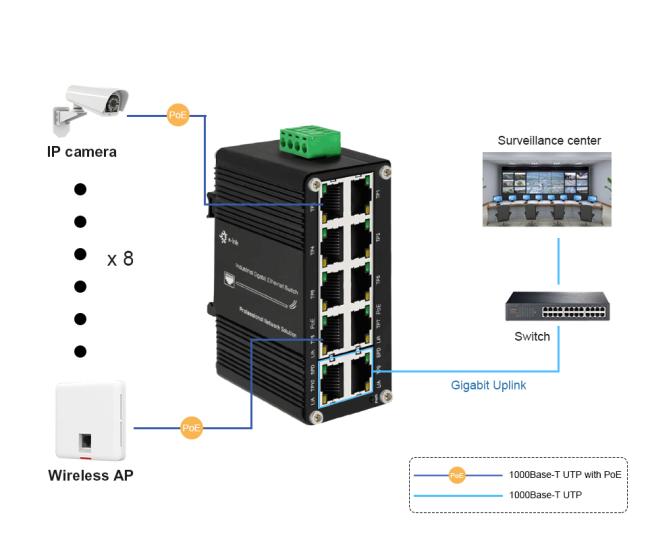

The LNK-IMC010GP is the mini Compact Industrial 8-Port 10/100/1000T 802.3at PoE + 2-Port 10/100/1000T Ethernet Switch
and is specially designed to be installed in a narrow environment. It provides up to 240-watt 802.3at PoE+ output capability
and wire-speed Gigabit performance even in the harsh industrial environment.
Ordering Information
| Model | Description |
| LNK-IMC010GP | Mini Industrial 8-Port 10/100/1000T 802.3at PoE + 2-Port 10/100/1000T Compact Ethernet Switch |
| Mounting Options | ► Default DIN-Rail Bracket installed. |
| Power Options | ► Power Supply is to be purchased separately |
