LED Screen Fiber Converter with 1x10G SFP+ Fiber Port + 8 x 10 /100 / 1000M Ethernet RJ45 Ports
LED Screen Fiber Converter with 1x10G SFP+ Fiber Port +
8 x 10 /100 / 1000M Ethernet RJ45 Ports
Fiber Media Converter Advantages:
· 1 x 10G SFP+ fiber optical port
· 10 x Gigabit Ethernet ports, PoE optional
· supports RJ45 ports 10/100/1000M and Full Duplex/Half Duplex auto-negotiation
· Not support VLAN
Overview
The E-link LNK-LED108G fiber converter offers a cost-effective way to convert optical signals
to electrical signals, or electrical signals to optical signals, for connecting the sending card to
the LED display. Delivering a full-duplex, efficient and stable data transmission that is not easily
interfered with, this converter is ideal for long-distance transmission.
Technical Indexs
| Interface | |
| Connector: | 8 x 10/100/1000M RJ45 |
| Optical Port: | 1 x 10G SFP+ |
| Distance | Depend on SFP+ modules used, 20km recommended. |
| Electrical and Mechanical | |
| Input Power: |
12~48VDC (Non PoE) 48~57VDC (PoE) Redundant Power (6-pin Terminal Block) |
| Power Consumption: |
5W Max (PoE in use) 253W Max (PoE not in use) |
| Resolution | 1920*1080@60Hz |
| Compatible brand | NovaStar, Colorlight |

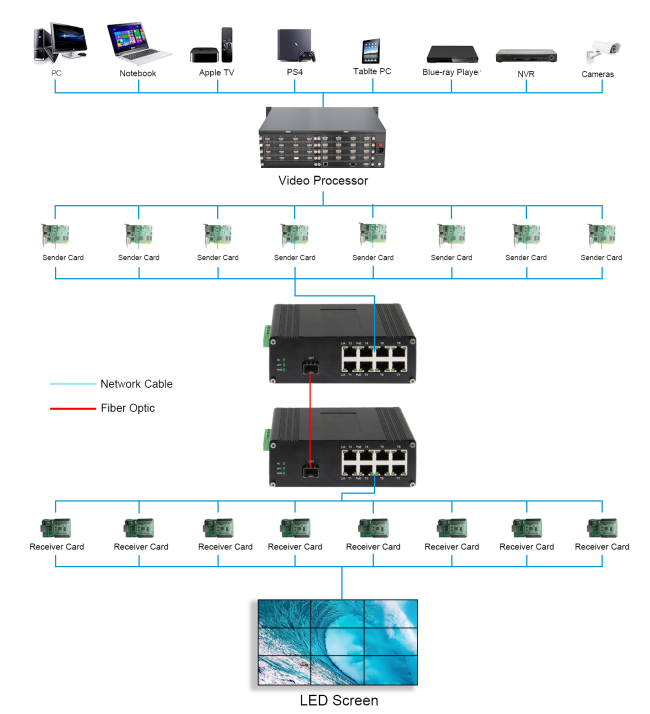

| Connection method |
Used in pairs, each ports must be connected accordingly, Such as Device A’s Port-1 must link to Device B’s Port-1 |
| Dimensions (WxDxH): | 150 x 115 x 50 mm |
| Weight: | 0.6Kg |
| Casing: | Aluminum Case |
| Mounting Options: | DIN-Rail |
| Environmental | |
| Operating Temperature: | -40°C to 80°C (-40°F to 176°F) |
| Storage Temperature: | -40°C to 85°C (-40°F to 185°F) |
| Relative Humidity: | 5% to 95% non-condensing |
| MTBF | > 200,000 hrs |
Orrdering Information
| Model | Description |
| LNK-LED108G | Industrial LED Screen Fiber Converter with 1x10G SFP+ Port + 8 x 10/100/1000M Ethernet RJ45 Ports. |
| LNK-LED108GP | Industrial LED Screen PoE Fiber Converter with 1x10G SFP+ Port + 8 x 10/100/1000M Ethernet RJ45 Ports. |
