Outdoor Armored 2-12Core SM Fiber Patch Cable (SC, LC, FC, ST Connector Optional
Outdoor Armored 2-12Core SM Fiber Patch Cable (SC, LC, FC, ST
Connector Optional
Fiber Optic Accessories Advantages:
► Outdoor Armored Cable, 9/125, 2-12 Core, Single mode
► SC, LC, FC, ST Connector Optional
► Special low-bend-sensitivity fiber provides high bandwidth and excellent communication
transmission property
► Novel flute design, easily strip and splice, simplify the installation and maintenance
► Ceramic connectors ensure low signal loss, and high reliability
► All our products are 100% new fiber optic cable of carrier-class quality, and 100% test before delivery
► Low smoke, zero halogen and flame retardant sheath
► Adapt to harsh environments and man-made damage
E-link Armored Fiber Patch Cable is considered ruggedized Fiber Optics. The transmission speeds
are equal to common fiber optic cable, but the optical cable is equipped with a shield that is encased
by a protective braid, which increases the durability. Armored Fiber Cable is designed to withstand in
the harsh environments.
As Fiber Optics continue to modify the face of high-speed interconnection technology, E-link’s 2-12
Core Armored Fiber raises the bar yet again. With the incorporation of the 2-12Core’s light weight
design and additional connector options, it is a perfect fit for any high-speed system that needs to
factor durability into their communication equation.

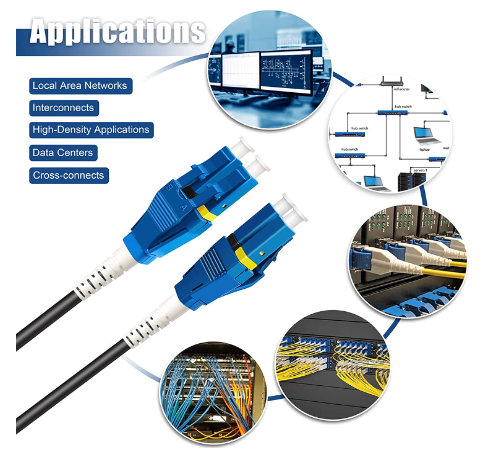

Application
Technical Indexes
| Specifications | ||
| Fiber Type | OS2 9/125μm G.652D | |
| Fiber Core | 2-12 | |
| Buffered Fiber | ||
| Material | PVC | |
| Dimension | 850±50μm | |
| Armor Tube | ||
| Dimension | 2.8±0.1 mm | |
| Material | SUS 204 | |
| Strength Member | ||
| Material | Polyester yarn | |
| Jacket | ||
| Dimension | 5.0±0.2mm | |
| Material | LSZH | |
| Color | Black | |
| Mechanical and Environmental Characteristics | ||
| Items | Unit | Specifications |
| Crush(Long Term) | N/10cm | 300 |
| Crush(Short Term) | N/10cm | 1000 |
| Min. Bend Radius (Dynamic) | mm | 20D |
| Min. Bend Radius (Static) | mm | 10D |
| Working Environment | ||
| Operating Temperature | -40℃to +85℃ | |
| Storage Temperature | -40℃to +85℃ | |
Orrdering Information
| Model | Description |
| LNK-2OFC-SC-SC-50 | 50 Meters SC to SC Outdoor Armored 2-Core SM Fiber Patch Cable |
| LNK-2OFC-SC-SC-100 | 100 Meters SC to SC Outdoor Armored 2-Core SM Fiber Patch Cable |
| LNK-4OFC-SC-SC-50 | 50 Meters SC to SC Outdoor Armored 4-Core SM Fiber Patch Cable |
| LNK-4OFC-SC-SC-100 | 100 Meters SC to SC Outdoor Armored 4-Core SM Fiber Patch Cable |
| LNK-6OFC-SC-SC-50 | 50 Meters SC to SC Outdoor Armored 6-Core SM Fiber Patch Cable |
| LNK-6OFC-SC-SC-100 | 100 Meters SC to SC Outdoor Armored 6-Core SM Fiber Patch Cable |
| LNK-8OFC-SC-SC-50 | 50 Meters SC to SC Outdoor Armored 8-Core SM Fiber Patch Cable |
| LNK-8OFC-SC-SC-100 | 100 Meters SC to SC Outdoor Armored 8-Core SM Fiber Patch Cable |
| LNK-12OFC-SC-SC-50 | 50 Meters SC to SC Outdoor Armored 12-Core SM Fiber Patch Cable |
| LNK-12OFC-SC-SC-100 | 100 Meters SC to SC Outdoor Armored 12-Core SM Fiber Patch Cable |
