Mini Industrial 3-Port 10/100/1000T + 1-Port 1000X SC Gigabit Ethernet Switch
Price:
$19.9-399
MOQ:
1pcs
Delivery Time:
5-12 working days
Brand:
E-link
Product Description
Mini Industrial Ethernet Switch Advantages
► 3-port 10/100/1000BASE-T RJ45 with auto MDI / MDI-X function
► 1-port 1000Base-X SC Fiber
► Supports Full/Half-duplex, Auto-negotiation
► IEEE 802.3az Energy Efficient Ethernet (EEE)
► 12~48VDC Terminal Block Power Input
Technical Indexes
| Interface | |
| Connector: | 3 x RJ45 |
| Optical Port: | 1 x SC 1000Base-X |
| Electrical and Mechanical | |
| Input Power: | 12~48VDC, 2-pin terminal block |
| Power Consumption: | 5W Max. |
| LED Indicators: | |
| PWR: | Power Status |
| L/A: | Ethernet LINK Status |
| FX: | Fiber LINK Status |
| Dimensions (WxDxH): | 95 x 70 x 30 mm |
| Weight: | 0.25Kg |
| Casing: | Aluminum Case |
Overview
LNK-IMC103G Series is an industrial-grade Gigabit Ethernet Switch, featuring three 10/100/1000BASE-T copper ports and
one 1000BASE-X SC fiber port and packed in an IP40-rated rugged but compact-size case. It is a hardened grade product
whose operating temperature range is -40°C to +75°C.
Ordering Information
| Model | Description |

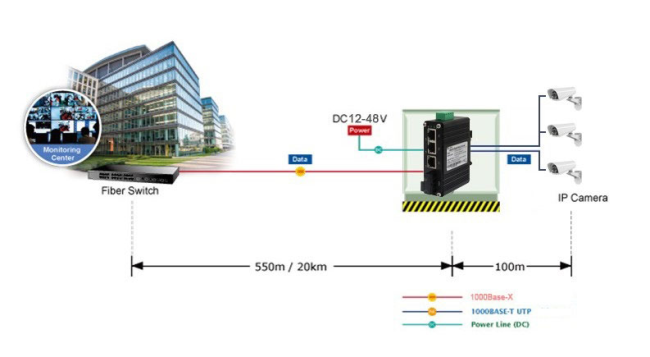

| LNK-IMC103G | Mini Industrial 3-Port 10/100/1000T + 1-Port 1000X SC Gigabit Ethernet Switch, SC Fiber Port, Multimode, Dual Fiber, 850nm, 550m |
| LNK-IMC103G-20 | Mini Industrial 3-Port 10/100/1000T + 1-Port 1000X SC Gigabit Ethernet Switch, SC Fiber Port, Single Mode, Dual Fiber, 1310nm, 20km |
| LNK-IMC103GS-20A | Mini Industrial 3-Port 10/100/1000T + 1-Port 1000X SC Gigabit Ethernet Switch, SC Fiber Port, Single Mode, Single Fiber, 1310nm TX/1550nm RX, 20km |
| LNK-IMC103GS-20B | Mini Industrial 3-Port 10/100/1000T + 1-Port 1000X SC Gigabit Ethernet Switch, SC Fiber Port, Single Mode, Single Fiber, 1550nm TX/1310nm RX, 20km |
| Mounting Options | ► Default DIN-Rail Bracket installed; Wall Mount Bracket is included. |
| Power Options | ► 24W/1A 24VDC Power Supply. Open Wire for Terminal Block |
| ► Power Supply is to be purchased separately. |
