Mini Industrial 100/1000BASE-X SFP to 10/100/1000BASE-T 30W PoE+ Media Converter
Mini Industrial PoE Media Converter Advantages
► 1-port 10/100/1000BASE-T RJ45 with auto MDI / MDI-X function
► 1 SFP Port, 100Base-FX or 1000Base-X dual mode (auto detection)
► Supports IEEE802.3af PoE (15.4W) or IEEE802.3at PoE+(30W)
► IEEE 802.3az Energy Efficient Ethernet (EEE) compliant
► Supports Full/Half-duplex, Auto-negotiation
Technical Indexes
| Interface | |
| Connector: | 1x RJ45 |
| Optical Port: | 1 x SFP 1000Base-X or 100Base-FX (auto detection) |
| Electrical and Mechanical | |
| Input Power: | 12~48VDC, 4-pin terminal block |
| Output Power | 48VDC |
| Power Consumption: | 36W Max. |
| LED Indicators: | |
| PWR: | Power Status |
| L/A: | Data LINK Status |
| POE: | PoE Status |
| 100M/1000M: | Fiber LINK Status |
| Dimensions (WxDxH): | 95 x 70 x 30 mm |
| Weight: | 0.25Kg |
Overview

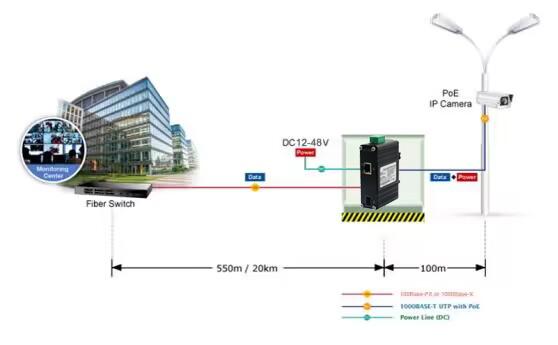

LNK-IMC3012P-SFP is a DIN rail type media converter that supports external SFP Modules and meets EN55022 standard.
The Ethernet port support high power PoE (Power Sourcing Equipment) which complies with IEEE802.3at standard. It is a
hardened grade product whose operating temperature range is -40°C to +75°C.
Ordering Information
| Model | Description |
| LNK-IMC3012P-SFP | Hardened 10/1001000BASE-TX to 100/1000BASE-X SFP Ethernet Media Converter with PoE+ |
| SFP Options | ► SFP option. Please select your SFP on our SFP Options Page (Industrial SFP). |
| ► SFP module is to be purchased separately. | |
| Mounting Options | ► Default DIN-Rail Bracket installed; Wall Mount Bracket is included. |
| Power Options | ► 75W/1.6A 48VDC Power Supply. Open Wire for Terminal Block |
| ► Power Supply is to be purchased separately. |
