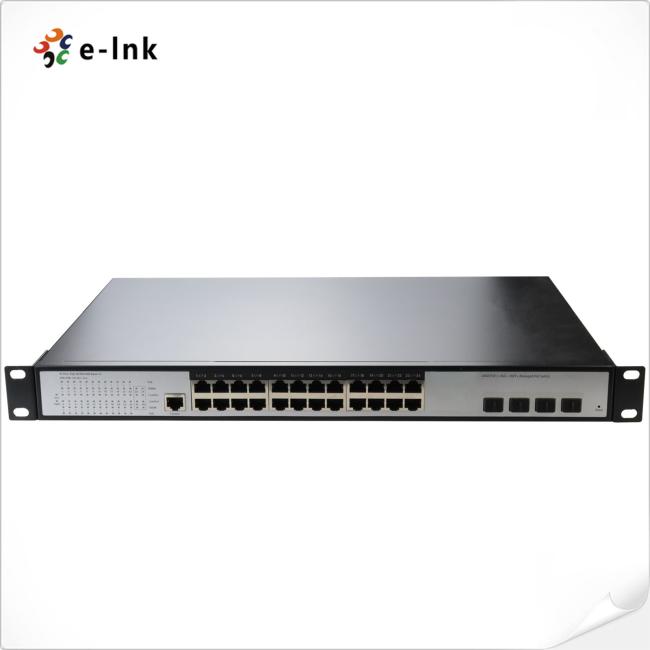

24 Port 10 100 1000BASE-T 802.3at PoE + 4 Port 10G SFP+ L3 Managed Switch
24 Port 10 100 1000BASE-T 802.3at PoE + 4 Port 10G SFP+ L3 Managed Switch
Commercial PoE Switch Advantages
► 24-Port 10/100/1000BASE-T RJ45 copper with IEEE 802.3at/af Power over Ethernet Injector function
► 4-Port 10G SFP+
► RJ45 console interface for basic management and setup
► Web smart management for easy application.
► Bandwidth management based on port input and output
► SNMP V1/V2/V3 management
► Support loop protection, automatic recovery
► Plug & play, no configuration required.
Tchenical Indexes
| Physical Port | |
| Fixed Port |
24 Port 10/100/1000BASE-T 802.3at PoE 4 10Gigabit SFP+ ports 1 Console port 1 USB port 1 Reset port |
| Packet buffer | 12Mbits |
| MAC address table | 16K |
| Exchange property | Delay time: < 7μs Backplane bandwidth: 128Gbps |
| PoE Standard | 24x IEEE 802.3af /IEEE 802.3at PoE |
| Power Information | |
| Power |
Built-in power AC 100~240V 50/60Hz MAX Power 400W (370W for PoE) |
| Physical Property | |
| Protection grade | IP30 |
| Installation mode | Rack Mounting |
| Weight | 4500g |
| Working Environment | |
| Operating Temperature | 0℃~50℃ |
| Storage Temperature | -40℃~75℃ |
| Warranty | |
| MTBF | 200,000 hours |
| Defects Liability Period | 1 year warranty, lifetime technical support |
Overview
TS-M324GP-4XSFP Layer 2 Managed Gigabit Switch provides 24 10/100/1000BASE-T ports featuring 36-watt 802.3at PoE+, and 4 extra 10G SFP+ fiber slots. Each of the eight Gigabit ports provides 36 watts of power, with a total power budget of up to 400 watts for the different types of PoE applications being employed. It provides a quick, safe and cost-effective Power over Ethernet network solution to IP security surveillance for small businesses and enterprises.

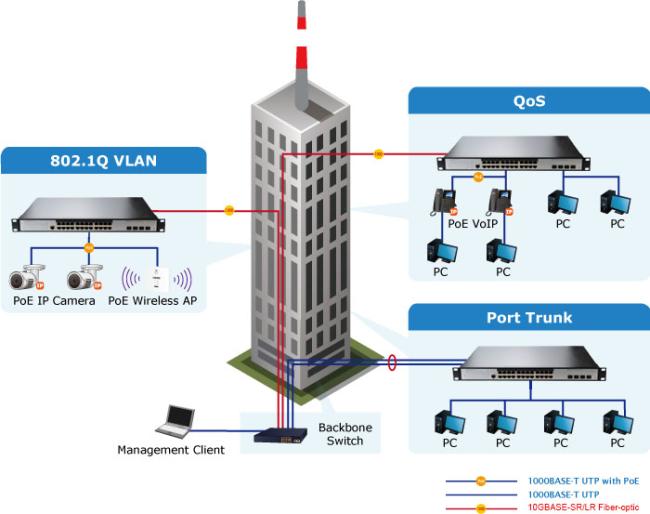

Due to its dependable design and user-friendliness, this product emerges as an optimal selection for bridging networks composed of devices like IP cameras and wireless access points across disparate locations.
Ordering Information
| Model | Description |
| TS-M324GP-4XSFP | L3 24-Port 10/100/1000T 802.3at PoE + 4-Port 10G SFP+ Managed Switch, total power budget of up to 400 watts |
| Mounting Options | ► Desktop or Rack Mounting Installation |
| SFP+ Options | ► SFP+ option. Please select your SFP on our SFP Options Page |
| ► SFP+ module is to be purchased separately. |
