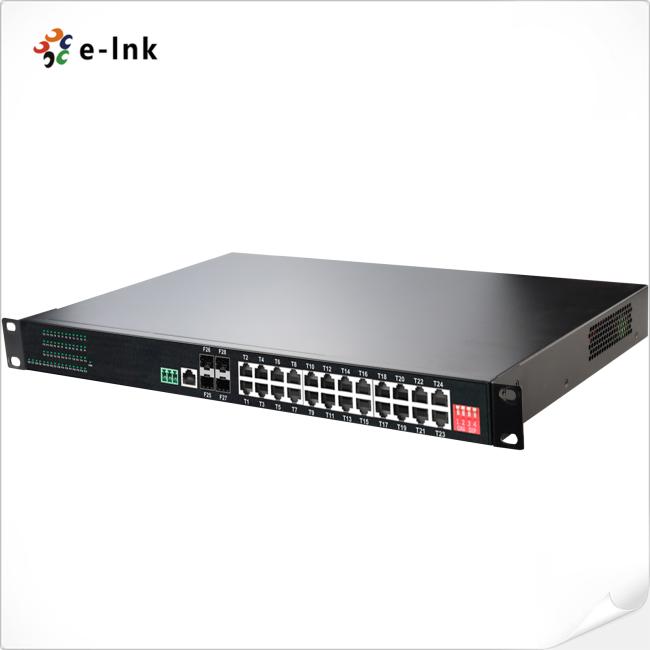

Industrial L2+ Rackmount 24-Port 101001000T + 4-Port 1000X SFP Managed Ethernet Switch
Industrial L2 + Rackmount 24-Port 101001000T + 4-Port 1000X SFP Managed Ethernet Switch
Industrial Switch Advantages
► Support 24x10/100/1000Base-T + 4x1000Base-X SFP
► 10/100/1000Mbps RJ45 Port supports Full/Half-duplex, Auto-negotiation, Auto MDI/MDIX
► Support connecting USB-C port for easy management, without the need to access the RS232 serial port at all
► 10K Bytes Jumbo Frame
► IEEE 802.3az Energy Efficient Ethernet (EEE)
► IP40 Aluminum Case
► Supports 1U 19” Rackmount installation
Technical Indexes
| Packet Buffer Memory: | 12M bits | |||
| Processing Type: | Store-and-Forward | |||
| Backplane bandwidth | 110Gbps | |||
| Max Packet Length: | 10K Bytes Jumbo Frame | |||
| Address Table Size: | 8K MAC Addresses | |||
| RS485 Serial Interface (Optional) | ||||
| Physical interface | Industrial standard 3-pin screw terminal | |||
| Data type | 1Ch RS485 Bi-Direction | |||
| RS-485 signals | Data+, Data-, GND | |||
| Serial port line distance (copper) | 1000 meters | |||
| Baud rate | 0 ~ 800kbps | |||
| Electrical and Mechanical | ||||
| Input Power: | 12~48VDC, Redundant Power (6-pin Terminal Block) | |||
| Power Consumption: | 15W Max. | |||
| Protection: | ||||
| Power Input Overload: | Automatic Resettable | |||
| Reverse Polarity: | Present | |||
| Dimensions (L x W x H): | 440mm x 300mm x 45mm | |||
| Weight: | 3.5Kg | |||
| Casing: | Aluminum Case | |||
| Mounting Options: | Rackmount | |||
Overview
ETH-IMC2424M series is the L2+ managed rackmount 24-port 10/100/1000Base-T + 4-port 1000Base-X SFP hardened Ethernet switch. The switch has 24 TP ports and 4 fiber ports. The TP (RJ45) supports 10/100/1000Base-T(X), Full/Half duplex mode, and auto MDI/MDI-X connection; the 1000Base-X SFP port supports 1 or 2 core Single-mode or Multi-mode fiber. With its reliable design and ease of use, the product is a great choice for integrating networks consisting of network devices such as IP cameras and wireless access points between remote locations.
Ordering Information
| Model | Description |
| ETH-IMC2424M | Industrial L2+ Rackmount 24-Port 10/100/1000T + 4-Port 1000X SFP Managed Ethernet Switch |
| SFP Options | ► SFP option. Please select your SFP on our SFP Options Page |
| ► SFP module is to be purchased separately. | |
| Mounting Options | ► Rackmount Installation |
| Power Options | ► Industrial Power Supply. Open Wire for Terminal Block. |
| ► Power Supply is to be purchased separately. |
