Industrial 8-Port 10/100/1000T 802.3bt PoE + 1-Port 100/1000Base-X Ethernet Switch
Price:
$29.9-389
MOQ:
1pcs
Delivery Time:
5-12 working days
Brand:
E-link
Product Description
Industrial PoE Switch Advantages:
► 8 10/100/1000Base-TX + 1 100/1000Base-X
► 10/100/1000Mbps RJ45 Port Supports Full/Half-duplex, Auto-negotiation, Auto MDI/MDIX
► Supports IEEE 802.3bt PoE++ (60W per port)
► Total PoE Power Budget up to 360W maximum
► SFP, SC, FC, ST Optional
Technical Indexes
| Interface | |
| Connector: | 8 x RJ45 |
| Optical Port: | 1 x 100/1000Base-X (SFP, SC, FC, ST Optional) |
| Environmental | |
| Operating Temperature: | -40°C to 80°C (-40°F to 176°F) |
| Storage Temperature: | -40°C to 85°C (-40°F to 185°F) |
| Electrical and Mechanical | |
| Input Power: | 48~57VDC, Redundant Power (6-pin Terminal Block) |
| Power Consumption: | 360W Max. (PoE in use) |
| 5W Max. (PoE not in use) | |
| Standard: | IEEE802.3af/at/bt |
| PoE: | |
| Port: | RJ45 Port 1 ~ Port 8 |
| Max. Power per Port: | 60W Max per port |
| Power Pin Assignment | 1/2(+), 3/6(-) or 4/5(+), 7/8(-) |
Overview

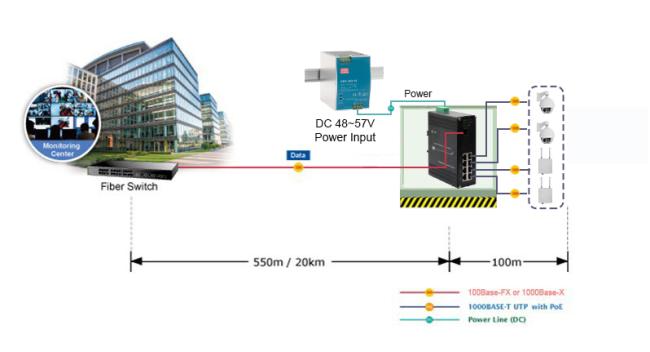

LNK-IMC108GP60 Series is an 8 ports 10/100/1000Base-TX + 1 port 100/1000Base-X Hardened PoE switch. The Switch
provides 8 port PoE++ function for kinds of Powered Devices to receive power as well as data over the RJ-45 cable. The
100/1000Base-X supports 1 or 2 core Single-mode or Multi-mode fiber.
Ordering Information
| Model | Description |
| LNK-IMC108GP60 | Industrial Ethernet Switch: 8-Port 10/100/1000Base-TX (8-port PoE++) + 1-Port 100/1000Base-X Fiber, Multimode, Dual Fiber, SC, 550m |
| LNK-IMC108GP60-20 | Industrial Ethernet Switch: 8-Port 10/100/1000Base-TX (8-port PoE++) + 1-Port 100/1000Base-X Fiber, Single Mode, Dual Fiber, SC, 20KM |
| LNK-IMC108GPS60-20 | Industrial Ethernet Switch: 8-Port 10/100/1000Base-TX (8-port PoE++) + 1-Port 100/1000Base-X Fiber, Single Mode, Single Fiber, SC, 20KM |
| LNK-IMC108GPF60-20 | Industrial Ethernet Switch: 8-Port 10/100/1000Base-TX (8-port PoE++) + 1-Port 100/1000Base-X Fiber, Single Mode, Single Fiber, FC, 20KM |
| LNK-IMC108GP60-SFP | Industrial 8-port 10/100/1000BASE-T (8-port PoE++) + 1-port 100/1000BASE SFP Ethernet Switch |
| SFP Options | ► SFP option. Please select your SFP on our SFP Options Page |
| ► SFP module is to be purchased separately. | |
| Mounting Options | ► Default DIN-Rail Bracket installed. |
| Power Options | ► 480W/10A 48VDC DIN-Rail Power Supply. Open Wire for Terminal Block. |
| ► Power Supply is to be purchased separately. |
