High-Performance Industrial L2 +Managed 12-Port 1000X SFP + 2-Port 1000X SFP Fiber Switch

High-Performance Industrial L2 +Managed 12-Port 1000X SFP + 2-Port 1000X SFP Fiber Switch

Industrial PoE Switch Advantages:

• High Bandwidth: Supports high-speed data transfer with 1000 Mbps SFP ports, ensuring efficient handling of large data volumes.
• Low Latency: Optimized for minimal delay, ideal for real-time applications.
• SFP Ports: Offers flexibility in connecting various fiber optic modules, allowing for customized network setups and easy scalability.
• Managed Features: Enables network administrators to configure and manage the switch according to specific needs, accommodating growth over time.
• Simplified Wiring: Provides power and data over the same cable, reducing installation complexity and costs.
• Supports Devices: Powers PoE-enabled devices such as IP cameras, VoIP phones, and wireless access points.
• Durability: Built to withstand harsh environments, including extreme temperatures, humidity, and vibration, ensuring reliable operation.
• Wide Operating Temperature Range: Suitable for deployment in industrial settings where environmental conditions can vary significantly.
• Layer 2+ Capabilities: Includes advanced networking features such as VLANs, QoS, and link aggregation for efficient traffic management.
• Monitoring and Diagnostics: Provides SNMP support for network monitoring and diagnostics, enhancing troubleshooting capabilities.
• Failover Mechanisms: Supports protocols like RSTP/MSTP for network redundancy, minimizing downtime.
• Power Redundancy: Often includes dual power inputs for continuous operation, even in case of a power failure.
• Access Control: Supports MAC address filtering and port security to protect against unauthorized access.
• Network Segmentation: Allows for VLAN configurations, enhancing security by segmenting traffic.

Overview

ETH-DIMC2012FM series is an Industrial 14 Port L2+ Managed Gigabit SFP Switch. It comprises

 of a 12-Port 100/1000Base-X SFP fiber optic interface and 2 extra 1.25G SFP interfaces delivered

in an IP40 case with redundant power system, being able to operate under the temperature range

from -40 to 80 Degree Celsius, the ETH-DIMC2012FM can be placed in virtually any environment.

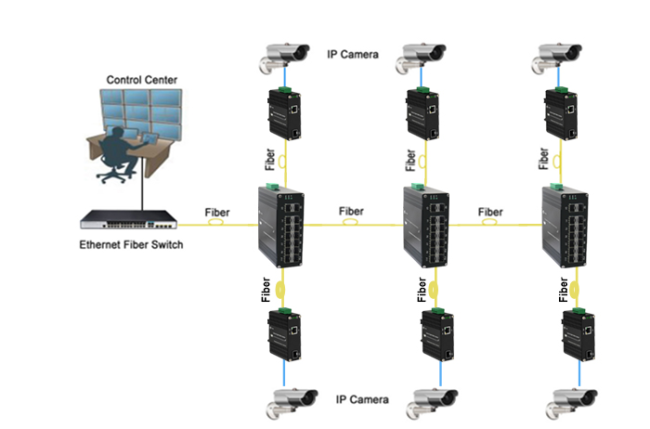

The High-Performance Industrial L2+ Managed 12-Port 1000X SFP + 2-Port 1000X SFP Fiber

Switch is designed to meet the demands of modern industrial networking environments. This

advanced switch provides a reliable and efficient solution for high-speed data transmission, making

it ideal for applications in manufacturing, transportation, and smart grid infrastructures.

Technical Indexs

Ethernet
Standards:	IEEE 802.3u 100BASE-TX/100BASE-FX
	IEEE 802.3ab Gigabit 1000T
	IEEE 802.3z Gigabit SX/LX
	IEEE 802.3x flow control and back pressure
	IEEE 802.3ad port trunk with LACP
	IEEE 802.1D Spanning Tree Protocol
	IEEE 802.1w Rapid Spanning Tree Protocol
	IEEE 802.1s Multiple Spanning Tree Protocol
	IEEE 802.1p Class of Service
	IEEE 802.1Q VLAN tagging
	IEEE 802.1X Port Authentication Network Control
	IEEE 802.3u 100BASE-TX/100BASE-FX
Forward & Filtering Rate:	148,800pps (100Mbps)
	1,488,000pps (1000Mbps)
Packet Buffer Memory:	12M bits
Processing Type:	Store-and-Forward
Backplane bandwidth	110Gbps
Max Packet Length:	10K Bytes Jumbo Frame
Address Table Size:	8K MAC Addresses
Interface
Optical Port:	14 x 1000Base-X SFP
USB-C:	1 x USB-C (for Management)
Environmental
Operating Temperature:	-40°C to  80°C (-40°F to 176°F)
Storage Temperature:	-40°C to 85°C (-40°F to 185°F)
Relative Humidity:	5% to 95% non-condensing
MTBF	> 200,000 hrs
Electrical and Mechanical
Input Power:	12~48VDC, Redundant Power (6-pin Terminal Block)
Power Consumption:	8W Max
Protection:
Power Input Overload:	Automatic Resettable
Reverse Polarity:	Present
DIP Switch
4-digit DIP switch function	DIP	Function	Settings
	SW 1	VLAN	ON - Enabled	OFF - Disabled
	SW 2	Ring Management	ON - Enabled	OFF - Disabled
	SW 3	Reserved	ON - Reserved	OFF - Reserved
	SW 4	Reserved	ON - Reserved	OFF - Reserved
LED Indicators:
Power:	Power Status
Fiber:	100/1000X SFP Port: F1~F12
Fiber:	Gigabit SFP Port: G1~G2
Dimensions (WxDxH):	149 x 114 x 50 mm
Weight:	0.55Kg
Casing:	Aluminum Case
Mounting Options:	DIN-Rail mount
Software Features
Redundancy Protocols	Support STP/RSTP/MSTP/ERPSv2, Link Aggregation
Multicast Support	Support IGMP Snooping V1/V2/V3,support GMRP, GVMP,802.1Q
VLAN	Support IEEE 802.1Q 4K VLAN,support QINQ, Double VLAN,
Time Management	SNTP
QOS	Flow-based redirection Flow-based rate limiting Flow-based packet filtering 8*Output queues of each port 802.1p/DSCP priority mapping Diff-Serv QoS, Priority Mark/Remark Queue Scheduling Algorithm (SP, WRR, SP+WRR)
ACL	Port-based Issuing ACL ACL based on port and VLAN L2 to L4 packet filtering, matching first 80 bytes message. Provide ACL based on MAC, Destination MAC address, IP Source, Destination IP, IP Protocol Type, TCP/UDP Port, TCP/UDP Port Range, and VLAN, etc
Diagnostic Maintenance	Support port mirroring, Syslog, Ping
Management Function	Support CLI, WEB, SNMPv1/v2/v3, Telnet server for management, EEE, LLDP, DHCP Server/Client(IPv4/IPv6), Cloud/MQTT
Alarm Management	Support 1 way relay alarm output, RMON, TRAP
Security	Broadcast Storm Protection, HTTPS/SSLv3, AAA & RADIUS, SSH2.0 Support DHCP Snooping, Option 82,802.1X security access, Support user hierarchical management, ACL access control list, Support DDOS,port-based MAC filtering / binding, MAC black holes, IP source protection, Port isolation, ARP message speed limit
Advance Layer 2+ Features	IPv4/IPv6 Management Static Route
Regulatory Approvals
ISO9001, CE, RoHS, FCC
EN55022:2010+AC: 2011, Class A
EN 61000-3-2: 2006+A1: 2009+A2: 2009
EN 61000-3-3: 2013
EN55024:2010
IEC 61000-4-2: 2008 (ESD)
IEC 61000-4-3: 2010 (RS)
IEC 61000-4-4: 2012 (EFT)
IEC 61000-4-5: 2014 (Surge)
IEC 61000-4-6: 2013 (CS)
IEC 61000-4-8: 2009 (PFMF)

Orrdering Information
