4-Port USB 2.0 Over CAT5/CAT6 Extender For Reliable Data Transmission
4-Port USB 2.0 Over CAT5/CAT6 Extender for Reliable Data Transmission
Model:LNK-U4T1-2.0
Overview
This device breaks through the USB transmission distance limit of no more than 5 Meter, and realizes the
extension of USB signal more than 100 Meter through the network cable. The device can be widely used
in military command and control system, police command and control system, traffic management system,
energy and electricity supply industry, government office, medical system, commercial presentation,
multimedia and public utilities etc.
Features
► Support USB2.0 high-speed (High-Speed), full-speed (Full-Speed) or low-speed (Low-Speed) device;
► Support USB-HUB expansion, support all kinds of USB devices;
► No Drivers Required, compatible with all operating systems;
► Support hot-swappable, plug and play;
► Extension Distance: Cat5 cable 100 meter, Cat6 cable 170 meter.
Technical Indexes
| UTP | Connector | RJ45 |
| Max. Distance | Cat5 cable: 100 meter, Cat6 cable: 170 meter | |
| USB2.0 |
Input / Output
|
USB2.0 Type-A |
|
Physical |
Size (L× W ×H) | 117mm x104mm x28mm |
| Case | Aluminum | |
|
Color
|
Black | |
| N.W . | 0.75Kg | |
| Power | Voltage | 5- 12V DC |
|
Power consumption
|
<5W | |
|
Environment |
Working temperature | -20℃~70℃ |
| Storage temperature | -40~85℃ | |
|
Humidity
|
0-95% (non-condensing) |

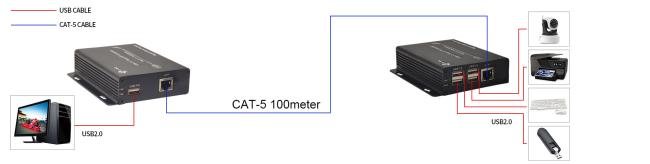

Application
Ordering Information
| Part No | Description of product |
| LNK-U4T1-2.0 | 4-port USB 2.0 UTP extender, 1xUSB port for Local Unit, 4xUSB ports for Remote Unit, up to 100m via Cat5 cable,170m via Cat6 cable |
