DP1.2 4K@60Hz 4:4:4 Uncompressed Audio and Video Fiber Extender

Price Negotiable

Price: $25-369

MOQ: 1pair

Delivery Time: 5-8 working day

Brand: E-link

Product Description

DP1.2 4K@60Hz 4:4:4 Uncompressed Audio and Video Fiber Extender

Audio and Video Fiber Extender Advantages

► Support audio and video synchronization to extend output

► The transmitter has a loop output interface (sharing local signals) and external audio embedding function

► The receiver has a backup output interface and audio stripping output function

► Supports RS-232 transparent transmission and EDID management learning, with simple and convenient control

► Video resolution up to 4K2K@50 /60Hz; 7680* 2160@30Hz 4: 4:4 transmission

► HDMI audio format: LPCM2/5.1/7.1CH, Dolby Digital/Plus/EX, Dolby True HD, DTS,DTS-EX, DTS-96/24, DTS

High Res, DTS-HD Master Audio, DSD

► Compliant with HDMI 2.0b, HDCP 2.2 and DVI 1.0 specifications

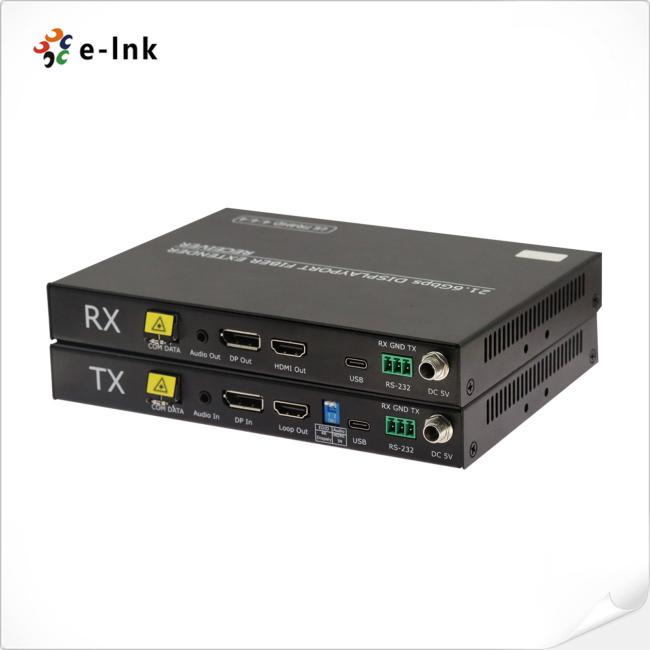

Audio and Video Fiber Extender Picture

Audio and Video Fiber Extender Technical Indexes

Transmitter Interface	standard	1 × DP1.2 input (4K@60Hz) 1 x HDMI 2.0 loop out (4K@60Hz) 1 x Audio input 2 × LC optical fiber 1 × RS232
Receiver Interface	standard	1 × DP1.2 output (4K@60Hz ) 1 x HDMI 2.0 output (4K@60Hz) 1 x Audio output 2 × LC optical fiber 1 × RS232
Video Resolution	DP	SMPTE: 720p \| 1080p \| 2160p VESA: 800x600\|1024x768\|1280x720\|1280x800\| 1280x960\|1280x1024\|1400x1050\|1600x1200\| 1920x1080 1920x1200\| 2048x1152\|2560x1600\|3840x1080\|3840x2160\| 4096x2160\|7680x2160\|7680x1080\|38402400 \|76801200\|2160*4096 Support custom non-standard resolution
	refresh rate	23.98/24/25/29.97/30/50/59.94/60Hz
Supported Standards	DP	1.2,1.1
	HDMI	1.3,1.4,2.0
Input voltage	DC 5V
Maximum power	10W
Operating Temperature	-25 ℃ to +55 ℃ (typical value 25 ℃)
Operating Humidity	20% to 90%
Weigh	1.0kg (Equipment weight) 1.5kg (Transportation weight)
Dimensions (L x W x H)	315mm x 290mm x 20mm (equipment size) 330mm x 295mm x 25mm (shipping dimensions)
