Mini Industrial 5-Port 10/100/1000T Compact Ethernet Switch
Mini Industrial 5-Port Gigabit (PoE) Ethernet Switch
Mini Industrial 5-Port Gigabit Ethernet Switch Advantages
► 5-port 10/100/1000BASE-T RJ45 with auto-MDI/MDI-X function
► Supports auto-negotiation and 10/100Mbps half/full duplex and 1000Mbps full duplex
► 12~48VDC wide range power input
► Supports 802.3x Flow control
► PoE Optional
► Complies with IEEE 802.3az Energy Efficient Ethernet (EEE)
► Supports DIN-Rail and Wall-mount installation
► -40°C to 80°C (-40°F to 176°F) operating temperature
Overview
LNK-IMC005G Series is a Mini Industrial 5-Port 10/100/1000T Gigabit Ethernet Switch
with 12~48VDC wide range power input. This unmanaged industrial Ethernet switch is
designed to match the critical industrial standards. With reliable and simple operation
against vibration and shock, and wide operation temperature range, it could match a
variety of harsh environment. The switch complies with CE and FCC standards, and
passed the 100% burning test to ensure that it will fulfill the needs of industrial applications.
It is a good choice for an economical solution for industrial Ethernet connections.
Mini Industrial 5-Port Gigabit Ethernet Switch Picture
Technical Indexes
|
Environmental |
|
|
Operating Temperature: |
-40°C to 80°C (-40°F to 176°F) |
|
Storage Temperature: |
-40°C to 85°C (-40°F to 185°F) |
|
Relative Humidity: |
5% to 95% non-condensing |
|
MTBF |
> 200,000 hrs |
|
Electrical and Mechanical |
|
|
Input Power: |
12~48VDC (Terminal Block) |
|
Power Consumption: |
<6W (PoE In Use: <125W) |
|
Power Input Overload: |
Automatic Resettable |
|
Reverse Polarity: |
Present |
|
Dimensions (WxDxH): |
95 x 70x 29mm |
|
Weight: |
0.25Kg |
|
Casing: |
Aluminum Case |
|
Mounting Options: |
DIN-Rail / Wall-mount |
|
LED Indicators: |
|
|
PWR |
Power |
|
L/A |
Link/Activity |
|
SPD |
Data Rate |

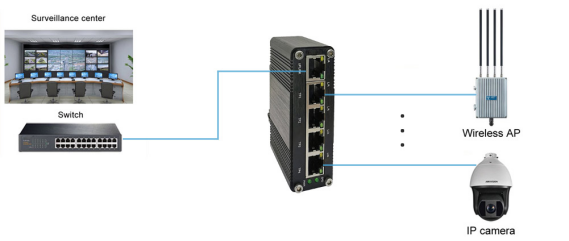

Application
Ordering Information
|
Model |
Description |
|
LNK-IMC005G |
Mini Industrial 5-Port 10/100/1000T Gigabit Ethernet Switch |
|
Mounting Options |
► Default DIN-Rail Bracket installed; Wall Mount Bracket is included. |
|
Power Options |
► Power Supply is to be purchased separately |
