1/2/4/8Ch HDMI Fiber Optic with External Audio Extender
1/2/4/8Ch HDMI Fiber Optic with External Audio Extender
HDMI Fiber Extender Advantage
► Full digital, Uncompressed HD optical fiber transmission
► Support Full HD 1920*1200@60Hz
► The attenuation of optical module SFP low to -3db
► 1 channel analog audio(3.5mm)
► Support HDMI 1.3b Protocal
► Support KVM
Overview
The LNK-HDMI Series HDMI Optical transmitter and receiver adopts the uncompressed
digital HD video and high-speed digital optical fiber transmission technology advanced, It
can transfer signal source(computer signal source, VGA signal source high digital DVD/DVR)
to long distance terminal easily, with strong anti-interference performance, ensure the signal
completed and stable.

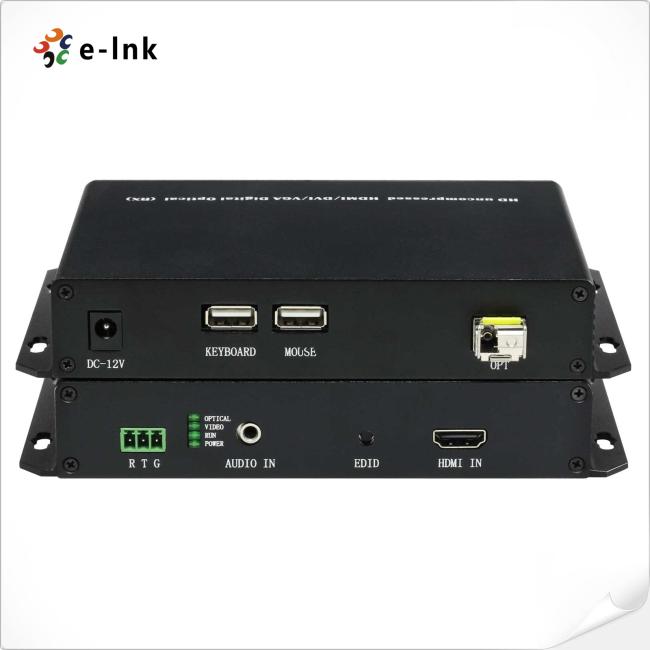

HDMI Fiber Extender Picture
Technical Indexes
|
Temperature |
-5°C to +75°C |
|
Humidity |
5 to 90 % RH (no condensation) |
|
The signal of Input and output |
HDMI |
|
Protocal |
HDMI1.3b,HDCP1.2 |
|
Pixel band width |
300MHz |
|
|
800x600P60 1024x768P60 1280x800P60 1280x1024P60 1360x768P60 1366x768P60 1400x1050P60 1440x900P60 1600x900P60 1600x1200P60 1680x1050P60 1280x720P50 1280x720P60 1920x1080P24 1920x1080P25 1920x1080P30 1920x1080P50 1920x1080P60 1920x1080I60 1920x1080I50 1920x1200P60 |
|
The signa of Audio input and output |
3.5MM Audio |
|
Audio format |
44.1K,48K,96K,176K,192K |
|
RS232 port |
3 ports industrial terminal |
|
RS232 Baud rate |
Support 115200 and all below |
|
RS 232 Data bits |
8 bits |
|
KVM receiver port |
A USB port |
|
KVM transmitter port |
B USB port |
|
Fiber port |
LC |
|
Fiber module |
SFP single mode |
|
Fiber wavelength |
1550/1310nm |
|
Fiber band width |
3Gbps |

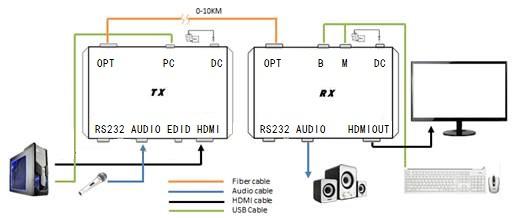

Application
Ordering Information
|
Item |
Description |
|
LNK-HDMI-100 |
HDMI to Fiber Converter: 1-Ch HDMI 1080P Video with external Audio, Compliant with HMDI 1.3 and HDCP 1.2 standard, Single Mode Fiber, 10KM, LC(SFP), including 1 transmitter & 1 receiver, used by pairs |
|
|
HDMI to Fiber Converter: 2-Ch HDMI 1080P Video with external Audio, Compliant with HMDI 1.3 and HDCP 1.2 standard, Single Mode Fiber, 10KM, LC(SFP), including 1 transmitter & 1 receiver, used by pairs |
|
LNK-HDMI-400 |
HDMI to Fiber Converter: 4-Ch HDMI 1080P Video with external Audio, Compliant with HMDI 1.3 and HDCP 1.2 standard, Single Mode Fiber, 10KM, LC(SFP), including 1 transmitter & 1 receiver, used by pairs |
|
LNK-HDMI-800 |
HDMI to Fiber Converter: 4-Ch HDMI 1080P Video with external Audio, Compliant with HMDI 1.3 and HDCP 1.2 standard, Single Mode Fiber, 10KM, LC(SFP), including 1 transmitter & 1 receiver, used by pairs |
