Video Fiber Converter 4Ch 5MP HD-AHD/HD-CVI/HD-TVI/CVBS 4-In-1 Fiber Converter Fiber Media Converter
Video Fiber Converter 4Ch 5MP HD-AHD/HD-CVI/HD-TVI/CVBS 4-In-1
Fiber Media Converter
Advantages
► Non-compression coding technology.
► Automatically identify formats of input videos.
► Support transmission of combined AHD, HDCVI, HD-TVI or CVBS signal
and controlling PTZ data RS485 simultaneously though fiber optical cable.
► Through LED indicators to inform its functional mode.
Technical Indexes
|
Optical Fiber |
||
|
Wavelength |
WDM:1310nm/1550nm |
|
|
Output Power
|
-8~3dBm
|
|
|
Optic fiber |
50/125u multimode,62.5/125u multimode,9/125u single mode |
|
|
Rx sensitivity
|
-26dBm
|
|
|
Optical connector |
FC (default), ST or SC (optional) |
|
|
Transmission Distance |
0~550M (MM) / 0~80KM (SM) (Default distance is 20Km) |
|
|
Video |
||
|
Number of Channels |
4 | |
|
Input/output
impedance
|
75 Ohm (unbalance)
|
|
|
Standard video
input/output voltage
|
1.0Vp-p
|
|
|
Video Bandwidth
|
50MHz
|
|
|
Sampling Bandwidth
|
8bit
|
|
|
Sampling Frequency |
108MHz |
|
|
Signal to noise ratio
|
>67dB | |
| Rise and Fall time | <0.8ns | |
| Optical Signal Intrinsic Jitter | <0.2 UI | |
| Differential Gain | < ±1.5% | |
| Differential Phase | < ±1° | |
| Connector | BNC | |
|
Supporting video |
5MP 4MP 3MP 1080P 720P Camera |
|
|
PTZ Data |
||
|
Protocol |
Default: RS485 (RS232/RS422 Optional) |
|
|
Number of channels |
1 |
|
|
Connector
|
3pins Terminal Blocks
|
|
|
Data Rate |
0-200Kbps |
|
|
Directions |
Default :Simplex from Rx to Tx (BIDI duplex optional) |
|
|
Environmental
|
||
|
Operating Temperature:
|
-15°C to 65°C (5°F to 149°F)
|
|
|
Storage Temperature:
|
-40°C to 85°C (-40°F to 185°F)
|
|
|
Relative Humidity:
|
5% to 95% non-condensing
|
|
|
MTBF
|
> 100,000 hrs
|
|
|
Electrical and Mechanical |
||
|
Input Power: |
DC5V 2A |
|
|
Power Consumption: |
≤6W |
|
|
LED Indicators: |
||
|
Fiber
|
Fiber Status
|
|
|
Video
|
LED1, LED2, LED3, LED4
|
|
|
Data
|
Data status
|
|
|
PWR
|
Power Status
|
|
|
Dimensions
(WxDxH):
|
167 x 172 x 28 mm
|
|
|
Weight:
|
1.5Kg
|
|
|
Casing:
|
Metal Case
|
|
|
Mounting Options:
|
Wall-mount/Rack-mount
|
|
|
Regulatory Approvals
|
||
|
ISO9001
|
||
|
CE, RoHS and FCC
|
||
Overview

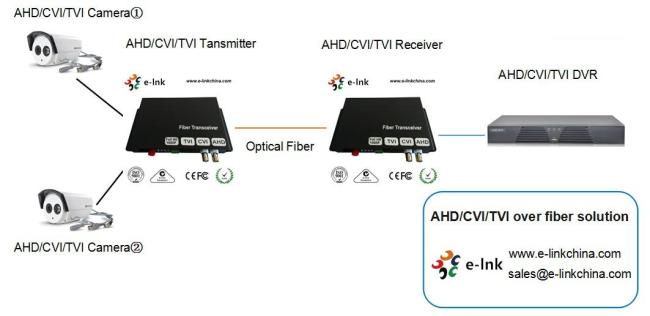

System Connection Diagram
Ordering Information
|
Model |
Details |
|
LNK-5MP-4V-20 |
4-Ch HD-AHD/CVI/TVI/CVBS video (5MP 4MP 3MP 1080P 720P
Camera), 20km, single mode single fiber, FC, including 1 transmitter &
1 receiver, used by pairs
|
|
LNK-5MP-4V-20R |
4-Ch HD-AHD/CVI/TVI/CVBS video (5MP 4MP 3MP 1080P 720P
Camera ) + 1-Ch Backward Data RS485 (for PTZ Cameras), 20km,
single mode single fiber, FC, including 1 transmitter & 1 receiver, used
by pairs
|
