4K HDMI 2.0 KVM USB over Fiber Optic Extender
4K HDMI 2.0 KVM USB over Fiber Optic Extender
HDMI Fiber Extender Advantage
► Transmits 4K HDMI2.0 video signals up to 10km over SMF, 300 meters over OM3 MMF
► Support keyboard and mouse signal transmission
► Uncompressed HDMI 2.0 video transmission up to 4K@60Hz 4:4:4 8-bit
► Supports HDCP 2.2
► Simple to install, plug and play
Overview
LNK-HF201KM KVM Video Signal Extender HDMI 2.0, USB (keyboard / mouse).
It consists of two modules that are interconnected by means of single-mode or
multimode fiber optic cable. It allows working at a maximum resolution of 4K
HDMI video. The maximum cable distance can be up to 10 km via Single Mode
Fiber or 300 meters via OM3 Multimode Fiber.

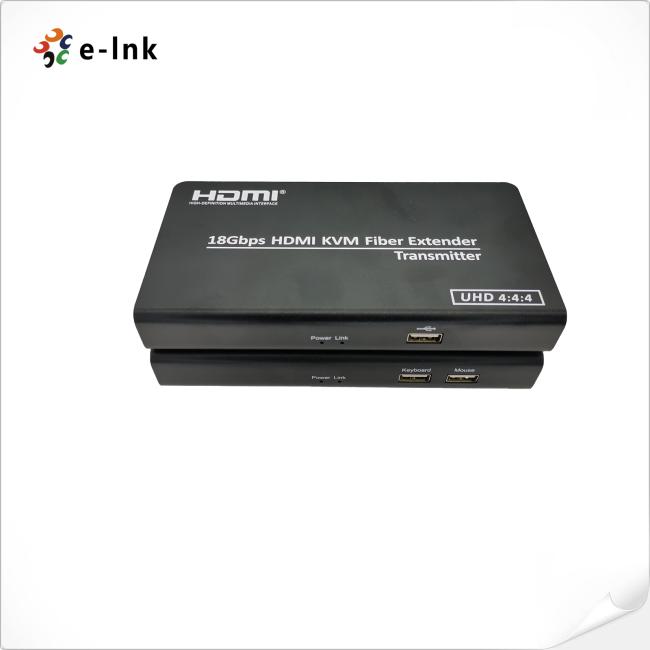

HDMI Fiber Extender Picture
Technical Indexes
|
K/M |
Interface |
PC: MINI-USB Keyboard And Mouse: USB-A |
|
Optical fiber |
Interface |
SFP model – LC connector |
|
|
Fiber type |
Single-mode or Multimode |
|
|
Wavelength |
Single-mode 1310nm, Multimode 850nm |
|
|
Interface bandwidth |
18Gbps |
|
|
Transmission distance |
OM3 Multimode fiber: 300M Single mode fiber: 10KM |
|
Other |
Power supply |
The power adapter: DC 5V |
|
|
Power dissipation |
MAX 5W |
|
|
Temperature |
Operating: -10℃ ~ +55℃ |
|
|
Humidity |
Operating: 5% ~ 90% |
|
|
Dimension (LxWxH) |
163 x 86 x 24(mm) |
|
|
Gross weight |
1.471KG |
|
|
The warranty |
1 year free warranty |

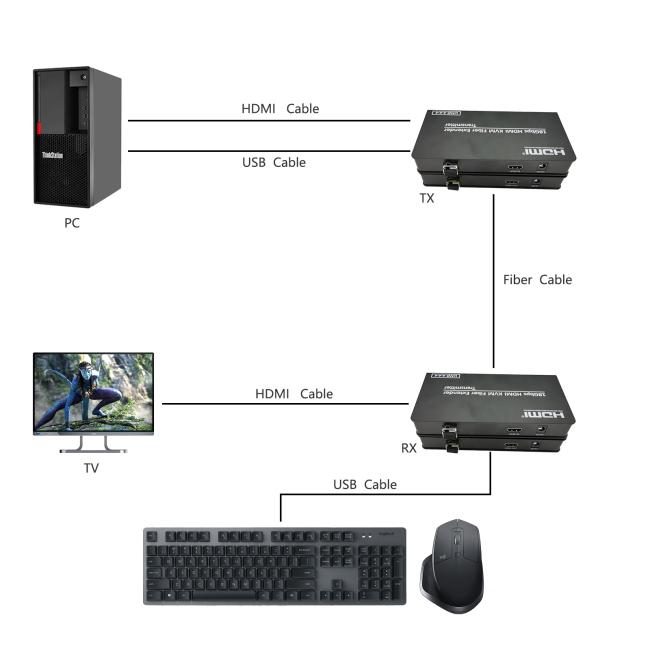

Application
Ordering Information
|
Model |
Description |
|
LNK-HF201KM-M |
4K HDMI 2.0 KVM USB over Fiber Optic Extender, OM3 Multimode Fiber, 300 meters |
|
LNK-HF201KM-10 |
4K HDMI 2.0 KVM USB over Fiber Optic Extender, Single-mode Fiber, 10km |
