LED Screen Fiber Converter with 1x10G SFP+ Fiber Port + 8 x 10/100/1000M Ethernet RJ45 Ports
LED Screen Fiber Converter with 1x10G SFP+ Fiber Port + 8 x 10/100/1000M Ethernet RJ45 Ports
LED Screen Fiber Converter Advantages
· 1 x 10G SFP+ fiber optical port
· 10 x Gigabit Ethernet ports, PoE optional
· supports RJ45 ports 10/100/1000M and Full Duplex/Half Duplex auto-negotiation
· Not support VLAN
LED Screen Fiber Converter Overview

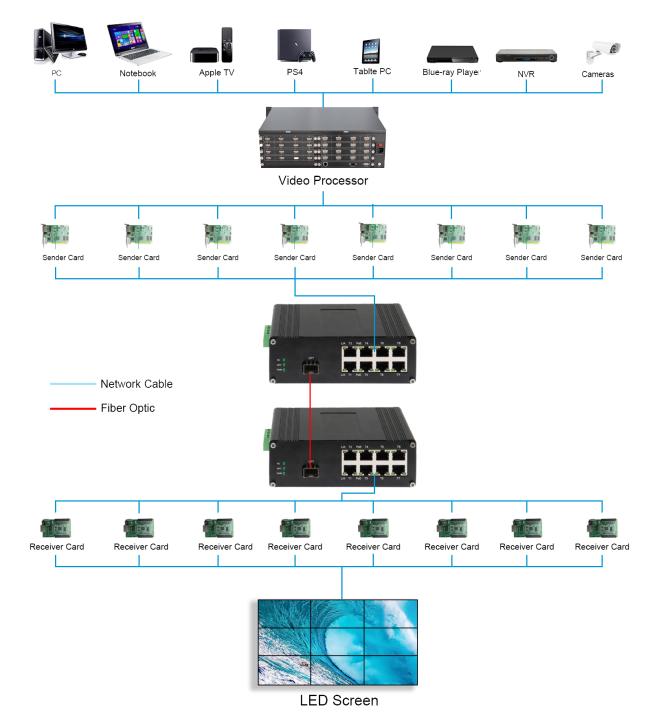

The E-link LNK-LED108G fiber converter offers a cost-effective way to convert optical signals to electrical signals, or electrical signals to optical signals, for connecting the sending card to the LED display. Delivering a full-duplex, efficient and stable data transmission that is not easily interfered with, this converter is ideal for long-distance transmission.
LED Screen Fiber Converter Technical Indexes
|
Interface |
|
|
Connector: |
8 x 10/100/1000M RJ45 |
|
Optical Port: |
1 x 10G SFP+ |
|
Distance |
Depend on SFP+ modules used, 20km recommended. |
|
Electrical and Mechanical |
|
|
Input Power: |
12~48VDC (Non PoE) 48~57VDC (PoE) Redundant Power (6-pin Terminal Block) |
|
Power Consumption: |
5W Max (PoE in use) 253W Max (PoE not in use) |
|
Resolution |
1920*1080@60Hz |
|
Compatible brand |
NovaStar, Colorlight |
|
Connection method |
Used in pairs, each ports must be connected accordingly, Such as Device A’s Port-1 must link to Device B’s Port-1 |
|
Dimensions (WxDxH): |
150 x 115 x 50 mm |
|
Weight: |
0.6Kg |
|
Casing: |
Aluminum Case |
|
Mounting Options: |
DIN-Rail |
LED Screen Fiber Converter Ordering Information
|
Model |
Description |
|
LNK-LED108G |
Industrial LED Screen Fiber Converter with 1x10G SFP+ Port + 8 x 10/100/1000M Ethernet RJ45 Ports. |
|
LNK-LED108GP |
Industrial LED Screen PoE Fiber Converter with 1x10G SFP+ Port + 8 x 10/100/1000M Ethernet RJ45 Ports. |
