Mini Industrial Managed 8-Port 10/100/1000T + 2-Port 100/1000X SFP Ethernet Switch
Mini Industrial Managed 8-Port 10/100/1000T + 2-Port 100/1000X SFP Ethernet Switch
Mini Industrial Managed Ethernet Switch Advantages
► 8x10/100/1000Base-TX + 2x100/1000Base-X SFP
► Supports WEB Management
► Supports 802.3x Flow Control
► Redundant Power Inputs
► Supports DIN-Rail installation
► -40°C to 80°C (-40°F to 176°F) operating temperature.
Overview
LNK-IMC208SG-SFP, managed industrial network switch, with 8 ports 10/100/1000Base-TX + 2 port 100/1000Base-X SFP. The switch provides 8 port RJ45 Ethernet ports. The 2-port 100/1000Base-X SFP supports 1 or 2 core Single-mode or Multi-mode fiber. With its reliable design and ease of use, the product is a great choice for integrating networks consisting of network devices such as IP cameras and wireless access points between remote locations.
Mini Industrial 5-Port Gigabit Ethernet Switch Picture
Technical Indexes
|
Ethernet |
|
|
Standards: |
IEEE802.3 10BASE-T |
|
|
IEEE802.3u 100BASE-TX/FX |
|
|
IEEE802.3ab 1000BASE-T |
|
|
IEEE802.3z 1000BASE-X |
|
|
IEEE 802.3az Energy Efficient Ethernet (EEE) |
|
Forward & Filtering Rate: |
14,880pps (10Mbps) |
|
|
148,800pps (100Mbps) |
|
|
1,488,000pps (1000Mbps) |
|
Backplane bandwidth |
20Gbps |
|
Packet Buffer Memory: |
9216 bits |
|
Processing Type: |
Store-and-Forward |
|
Max Packet Length: |
9K Bytes Jumbo Frame |
|
Address Table Size: |
4K MAC Addresses |
|
Interface |
|
|
Connector: |
8 x RJ45 |
|
Optical Port: |
2 x 100/1000Base-X SFP |
|
Environmental |
|
|
Operating Temperature: |
-40°C to 80°C (-40°F to 176°F) |
|
Storage Temperature: |
-40°C to 85°C (-40°F to 185°F) |
|
Relative Humidity: |
5% to 95% non-condensing |
|
MTBF |
> 200,000 hrs |
|
Electrical and Mechanical |
|
|
Input Power: |
12~48VDC, Redundant Power (4-pin Terminal Block) |
|
Power Consumption: |
5W Max. |
|
Protection: |
|
|
Power Input Overload: |
Automatic Resettable |
|
Reverse Polarity: |
Present |

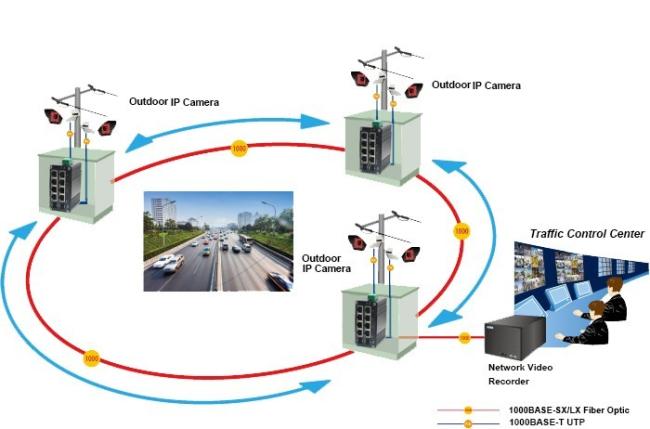

Application
