95W Outdoor Industrial IP67 Waterproof 802.3bt PoE+ Injector

95W Outdoor Industrial IP67 Waterproof 802.3bt PoE+ Injector Advantages

► Support 10/100/1000Base-TX

► IEEE 802.3af/at/bt compliant

► Outdoor using, power directly

► PoE output up to 95W

► Power pins: 4/5(+),7/8(-) and 1/2(+),3/6(-)

► Provide signal and PoE output, lightning protection 6KV

► Wide temperature design: -40℃ to +80℃

► Metal casing, waterproof, dustproof, IP67

► Sealing gasket past extension, bearing, corrosion, aging test

► Plug-and-play installation

95W Outdoor Industrial IP67 Waterproof 802.3bt PoE+ Injector Overview

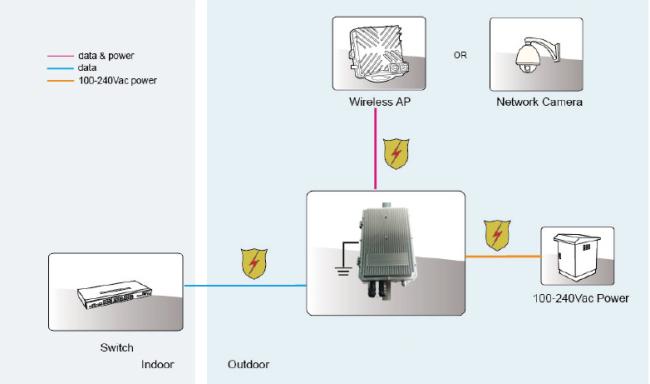

E-link LNK-IPOE-95W Industrial IP67-rated Single-port 802.3bt PoE Injector provides a maximum of up to 95 watts for each PoE output port, transmitting both the Gigabit Ethernet data and 802.3bt PoE power over the UTP cable. It is specifically designed for such outdoor powered devices (PDs) as PTZ network cameras, PTZ speed dome cameras, multi-channel (11a/b/g/n) wireless LAN access points and other network devices that need a higher power to work stably.

  With industrial-level IP67-rated aluminum case, the LNK-IPOE-95W provides a high level of immunity against electromagnetic interference, and is able to protect itself from dust and water ingress and to operate under the temperature range from -40 to 80 degrees C. All these features ensure the highest level of reliability for mission-critical applications in any difficult environment.

  LNK-IPOE95W is designed for outdoor using, which works with 90-264VAC input. It has detection chip inside, which will detect and classify PD before powering it. It will not provide power until a standard-compliant PD is detected. The effective distance is 100 meters over Cat5e/Cat6 cables. It is especially suitable for working in complex power situations. It is easy to install with installation kit LNK-POT-MBK, no need to open equipment.

95W Outdoor Industrial IP67 Waterproof 802.3bt PoE+ Injector Technical Indexes
