Mini 12G-SDI to Fiber Converter with Tally and RS485
Mini 12G-SDI to Fiber Converter with Tally and RS485
Product Advantages
► Each SDI channel includes 8-channel audio embedded
► Automatic cable equalization to ensure signal integrity
► Supports ST-2082-1(12G), ST-2081-1(6G), ST-424(3G), ST-292(HD) and ST-259(SD)
► Integrated Reclocker Locks to SMPTE Rates of 11.88Gbps, 5.94Gbps, 2.97Gbps, 1.485Gbps or Divide-by-1.001 Subrates and 270 Mbps
► Directly compatible with 12G/6G/3G-SDI camera systems
► Long transmission capability at least 10 km (6.2miles), up to 80 km
Technical Indexes
|
Formats |
Supports ST-2082-1(12G), ST-2081-1(6G), ST-424(3G), ST-292(HD) And ST-259(SD) |
|
Compatible |
Compatible with DVB-ASI and AES10 (MADI) |
|
Input |
1 x 12G-SDI on BNC |
|
Output |
1 x LC optical fiber |
|
1 x 12G-SDI loop-out on BNC |
|
|
Supported Resolution |
HDTV 4K*2K, 1080P, 1080I, 720P |
|
Resolution range |
3840*2160@60Hz |
|
Input cable specification |
≤70m@12G SDI Belden 1694A |
|
Output cable specification |
≤70m@12G SDI Belden 1694A |
|
Data type |
Backward Tally |
|
Data type |
Backward RS485 |
|
Optical transmission bandwidth |
270MHz～12GHz |
|
Power |
5-15 VDC |
|
Power Consumption |
2 W (Max.) |
|
Dimensions (LxWxH) |
80 x 40 x 20 (mm) |
|
Storage Temperature |
-40℃～80℃ |
|
Operating Temperature |
-40℃～85℃ |
Overview
LNK-M12G-1V1T1D Series Mini-type 12G-SDI Fiber Converter supports 1Ch 12G Video (audio embedded), 1Ch Tally signal and 1Ch Backward RS485 transmitted via fiber optical cable, and monitor the signal locally over a 12G loop output. E-link 12G Video over Fiber Converters includes one transmitter and one receiver for HDTV 4K*2K(3840*2160@60Hz), 1080P,1080I, 720P.

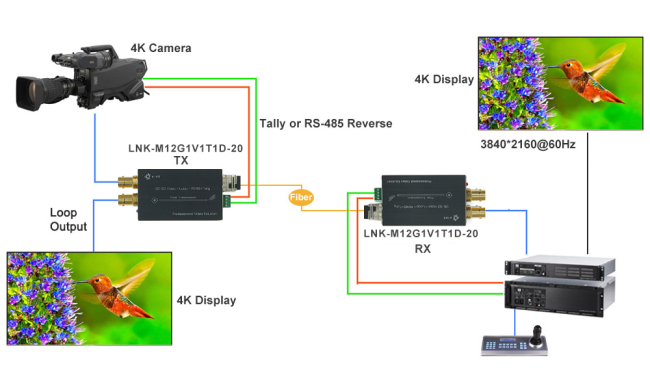

Application
Ordering Information
|
Model |
Description |
|
LNK-M12G-1V1T1D-20 |
Mini-type 12G-SDI to Fiber Converter with Tally, Reverse RS485 and loop out, SMF, LC Fiber Connector 20KM, including Transmitter and Receiver, used by pairs |
