L2+ 8-Port 10/100/1000T 802.3at PoE + 2-Port 100/1000X SFP Managed Switch
L2+ 8-Port 10/100/1000T 802.3at PoE + 2-Port 100/1000X SFP Managed Switch
Advantage
► 8-Port 10/100/1000BASE-T RJ45 copper with IEEE 802.3at/af Power over Ethernet Injector function
► 2-Port 100/1000BASE-X mini-GBIC/SFP
► RJ45 console interface for basic management and setup
► Bandwidth management based on port input and output
► SNMP V1/V2/V3 management
► Support loop protection, automatic recovery
Overview

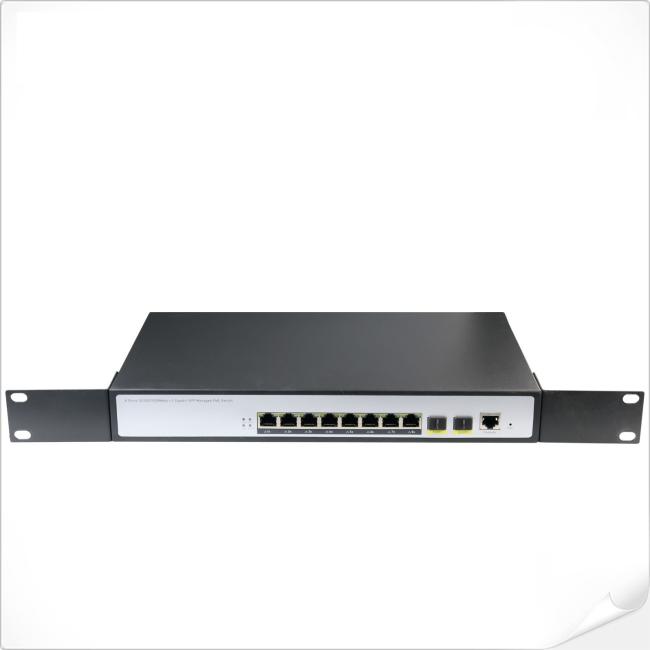

TS-M308GP-2SFP Layer 2 Managed Gigabit Switch provides 8 10/100/1000BASE-T ports featuring
36-watt 802.3at PoE+, and 2 extra 100/1000BASE-X SFP fiber slots. Each of the eight Gigabit ports
provides 36 watts of power, with a total power budget of up to 250 watts for the different types of PoE
applications being employed. It provides a quick, safe and cost-effective Power over Ethernet network
solution to IP security surveillance for small businesses and enterprises.
Technical Indexes
|
Physical Port |
|
|
RJ45 port and speed |
8x10/100/1000Base-TX 802.3at PoE |
|
Fiber port and speed |
2x100/1000Base-FX SFP (Dual Mode, Auto Detection) |
|
Parameters |
|
|
Ethernet standards |
IEEE 802.3 IEEE 802.3u 100BASE-TX IEEE 802.3ab1000BASE-T IEEE 802.3x IEEE 802.3z 1000BASE-X IEEE 802.3af/at IEEE 802.3ad IEEE 802.3q, IEEE 802.3q/p IEEE 802.1w, IEEE 802.1d, IEEE 802.1S STP (Spanning Tree Protocol) RSTP/MSTP(Rapid Spanning Tree Protocol) ERPS ring network protocol |
|
Packet buffer |
4Mbits |
|
MAC address table |
8K |
|
Transmission mode |
Store and Forward (full/half duplex mode) |
|
Exchange property |
Delay time: < 7μs |
|
PoE |
|
|
PoE Standard |
8x IEEE 802.3af /IEEE 802.3at PoE |
|
Power budget |
Max. PoE output power budget 30W |
|
LED Indicator |
|
|
Power |
Connect-always |
|
RJ45 |
Link/Act: connect-always; Data exchange-twinkle Speed light: 100Mbps-always; 10Mbps-twinkle |
|
Fiber |
Link/Act: connect-always; Data exchange-twinkle |
|
Power Information |
|
|
Power |
Built-in power AC 100~240V 50/60Hz MAX Current 5.2A MAX Power 250W |

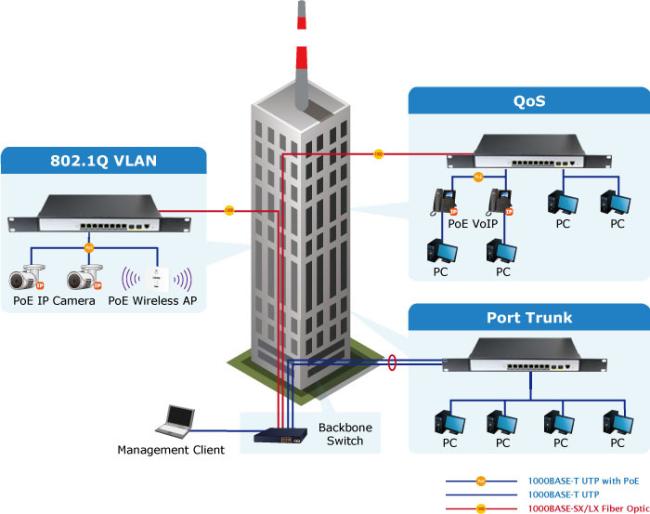

Application
Ordering Information
|
Model |
Description |
|
TS-M308GP-2SFP |
L2+ 8-Port 10/100/1000T 802.3at PoE + 2-Port 100/1000X SFP Managed Switch, total power budget of up to 250 watts |
|
Mounting Options |
► Desktop or Rack Mounting Installation |
|
SFP Options |
► SFP option. Please select your SFP on our SFP Options Page |
|
► SFP module is to be purchased separately. |
