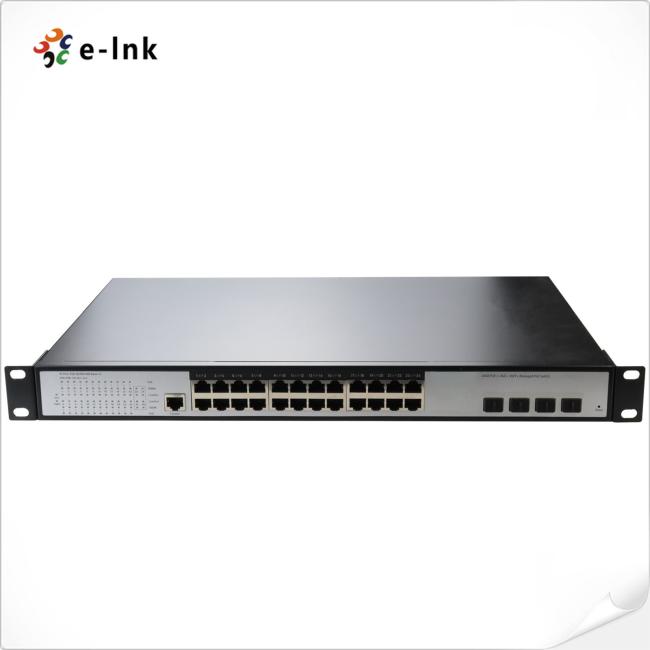

24 Port 10/100/1000BASE-T 802.3at PoE + 4 Port 10G SFP+ L3 Managed Switch
24 Port 10/100/1000BASE-T 802.3at PoE + 4 Port 10G SFP+ L3 Managed Switch
Advantage
► 24-Port 10/100/1000BASE-T RJ45 copper with IEEE 802.3at/af Power over Ethernet Injector function
► 4-Port 10G SFP+
► RJ45 console interface for basic management and setup
► Web smart management for easy application.
► Bandwidth management based on port input and output
► SNMP V1/V2/V3 management
Overview
TS-M324GP-4XSFP Layer 2 Managed Gigabit Switch provides 24 10/100/1000BASE-T ports
featuring 36-watt 802.3at PoE+, and 4 extra 10G SFP+ fiber slots. Each of the eight Gigabit ports
provides 36 watts of power, with a total power budget of up to 400 watts for the different types of
PoE applications being employed. It provides a quick, safe and cost-effective Power over Ethernet
network solution to IP security surveillance for small businesses and enterprises.
Technical Indexes
|
PoE |
|
|
PoE Standard |
24x IEEE 802.3af /IEEE 802.3at PoE |
|
Power budget |
Max. PoE output power budget 30W |
|
LED Indicator |
|
|
Power |
Connect-always |
|
RJ45 |
Link/Act: connect-always; Data exchange-twinkle Speed light: 100Mbps-always; 10Mbps-twinkle |
|
Fiber |
Link/Act: connect-always; Data exchange-twinkle |
|
Power Information |
|
|
Power |
Built-in power AC 100~240V 50/60Hz MAX Power 400W (370W for PoE) |
|
Physical Property |
|
|
Protection grade |
IP30 |
|
Dimensions |
440mm x 290mm x 45mm (L x W x H) |
|
Installation mode |
Rack Mounting |
|
Weight |
4500g |
|
Working Environment |
|
|
Operating Temperature |
0℃~50℃ |
|
Storage Temperature |
-40℃~75℃ |
|
Warranty |
|
|
MTBF |
200,000 hours |
|
Defects Liability Period |
1 year warranty, lifetime technical support |

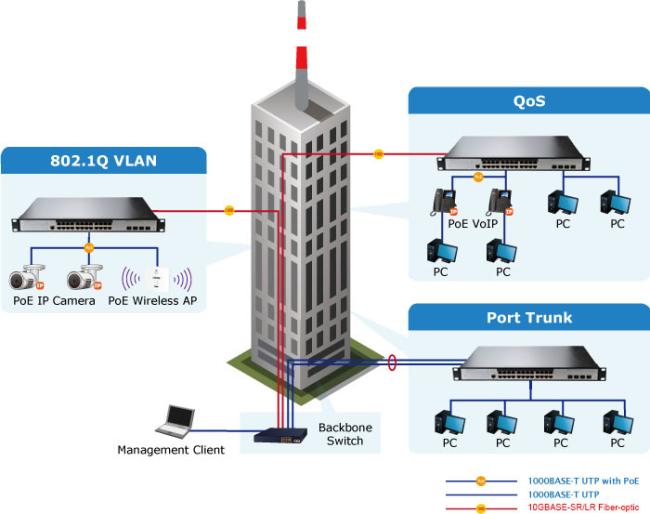

Application
Ordering Information
|
Model |
Description |
|
TS-M324GP-4XSFP |
L3 24-Port 10/100/1000T 802.3at PoE + 4-Port 10G SFP+ Managed Switch, total power budget of up to 400 watts |
|
Mounting Options |
► Desktop or Rack Mounting Installation |
|
SFP+ Options |
► SFP+ option. Please select your SFP on our SFP Options Page |
|
► SFP+ module is to be purchased separately. |
