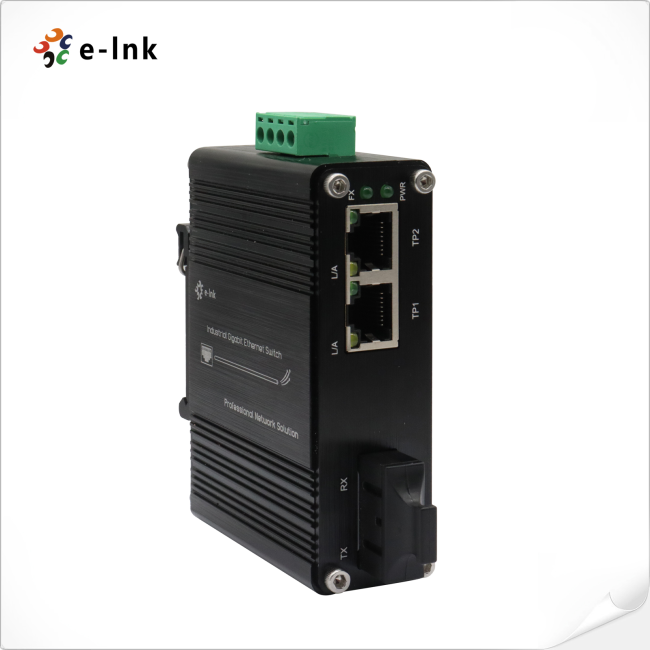

Mini Industrial 2-Port 10/100/1000Base-TX to 1000Base-X Media Converter
Mini Industrial 2-Port 10/100/1000Base-TX to 1000Base-X Media Converter
Advantages
► 2-Port 10/100/1000BASE-T RJ45 with auto MDI / MDI-X function
► 1-Port 1000Base-X SC
► Supports Full/Half-duplex, Auto-negotiation
► IEEE 802.3az Energy Efficient Ethernet (EEE)
► 12~48VDC Terminal Block Power Input
► Supports DIN-Rail & Wall-mount installation
► Environmentally hardened -40°C to 75°C
(-40°F to 167°F) operating temperature
Overview
The LNK-IMC1200G Series provides media conversion between 2-Port 10/100/1000BASE-T and 1-Port 1000BASE-X Fiber. It’s a hardened product with wide operating temperature range from -40°C to 75°C, and ruggedized aluminum housing. The Ethernet port supports both half-duplex and full-duplex mode. The rugged hardware design ensures that your Ethernet equipment can withstand demanding industrial conditions, and easy to mount on a DIN rail or in distribution boxes.

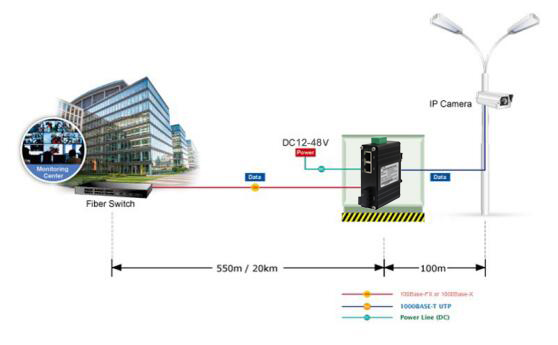

Application
Ordering Information
|
Model |
Description |
|
LNK-IMC1200G |
Mini Industrial Media Converter, 1-port 1000BASE SC + 2-port 10/100/1000BASE-T, SC Fiber Port, Multimode, 850nm, 550m |
|
LNK-IMC1200G-20 |
Mini Industrial Media Converter, 1-port 1000BASE SC + 2-port 10/100/1000BASE-T, SC Fiber Port, Single Mode, 1310nm, 20km |
|
LNK-IMC1200G-S20 |
Mini Industrial Media Converter, 1-port 1000BASE SC + 2-port 10/100/1000BASE-T, SC Fiber Port, Single Mode, Single Fiber, 1310/1550nm, 20km |
|
Mounting Options |
► Default DIN-Rail Bracket installed; Wall Mount Bracket is included. |
|
Power Options |
► 24W/1A 24VDC Power Supply. Open Wire for Terminal Block |
|
► Power Supply is to be purchased separately. |
