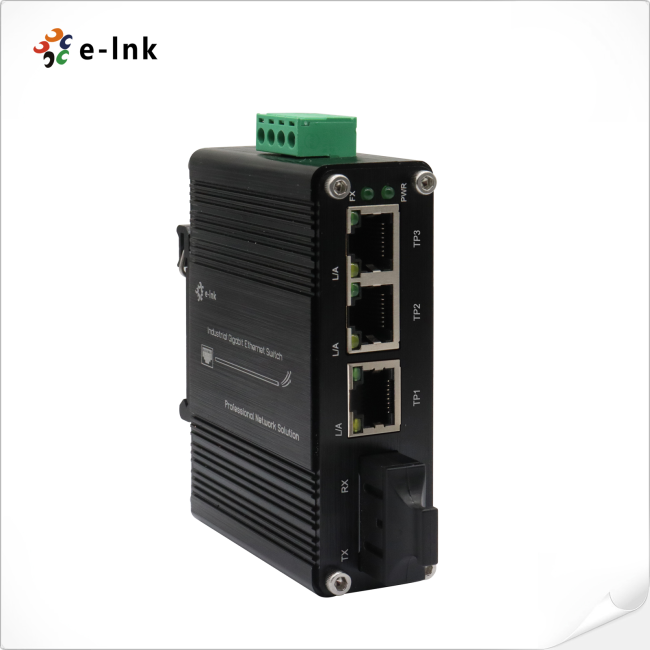

Mini Industrial 3-Port 10/100/1000T + 1-Port 1000X SC Gigabit Ethernet Switch
Mini Industrial 3-Port 10/100/1000T + 1-Port 1000X SC Gigabit Ethernet Switch
Advantages
► 3-port 10/100/1000BASE-T RJ45 with auto MDI / MDI-X function
► 1-port 1000Base-X SC Fiber
► Supports Full/Half-duplex, Auto-negotiation
► IEEE 802.3az Energy Efficient Ethernet (EEE)
► 12~48VDC Terminal Block Power Input
► IP40 Aluminum Case
► Supports DIN-Rail & Wall-mount installation
► Environmentally hardened -40°C to 75°C
(-40°F to 167°F) operating temperature
Overview
LNK-IMC103G Series is an industrial-grade Gigabit Ethernet Switch, featuring three 10/100/1000BASE-T copper ports and one 1000BASE-X SC fiber port and packed in an IP40-rated rugged but compact-size case. It is a hardened grade product whose operating temperature range is -40°C to +75°C. The Ethernet port supports both half-duplex and full-duplex mode. 1000Base-X supports 1 or 2 core Single-mode or Multi-mode fiber. With its reliable design and ease of use, the product is a great choice for integrating networks consisting of network devices such as IP cameras and wireless access points between remote locations.

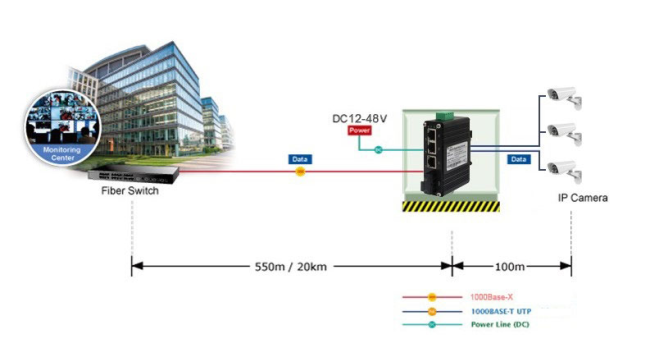

Application
Ordering Information
|
Model |
Description |
|
LNK-IMC103G |
Mini Industrial 3-Port 10/100/1000T + 1-Port 1000X SC Gigabit Ethernet Switch, SC Fiber Port, Multimode, Dual Fiber, 850nm, 550m |
|
LNK-IMC103G-20 |
Mini Industrial 3-Port 10/100/1000T + 1-Port 1000X SC Gigabit Ethernet Switch, SC Fiber Port, Single Mode, Dual Fiber, 1310nm, 20km |
|
LNK-IMC103GS-20A |
Mini Industrial 3-Port 10/100/1000T + 1-Port 1000X SC Gigabit Ethernet Switch, SC Fiber Port, Single Mode, Single Fiber, 1310nm TX/1550nm RX, 20km |
|
LNK-IMC103GS-20B |
Mini Industrial 3-Port 10/100/1000T + 1-Port 1000X SC Gigabit Ethernet Switch, SC Fiber Port, Single Mode, Single Fiber, 1550nm TX/1310nm RX, 20km |
|
Mounting Options |
► Default DIN-Rail Bracket installed; Wall Mount Bracket is included. |
|
Power Options |
► 24W/1A 24VDC Power Supply. Open Wire for Terminal Block |
|
► Power Supply is to be purchased separately. |
