Mini Industrial 3-Port 10/100/1000T + 1-Port 100/1000X SFP Gigabit Ethernet Switch

Mini Industrial 3-Port 10/100/1000T + 1-Port 100/1000X SFP Gigabit Ethernet Switch

Advantages

► 3-port 10/100/1000BASE-T RJ45 with auto MDI / MDI-X function

► 1 SFP Port, 100Base-FX or 1000Base-X dual mode (auto detection)

► Supports Full/Half-duplex, Auto-negotiation

► IEEE 802.3az Energy Efficient Ethernet (EEE)

► 12~48VDC Terminal Block Power Input

► IP40 Aluminum Case

► Supports DIN-Rail & Wall-mount installation

► Environmentally hardened -40°C to 75°C
(-40°F to 167°F) operating temperature

Overview

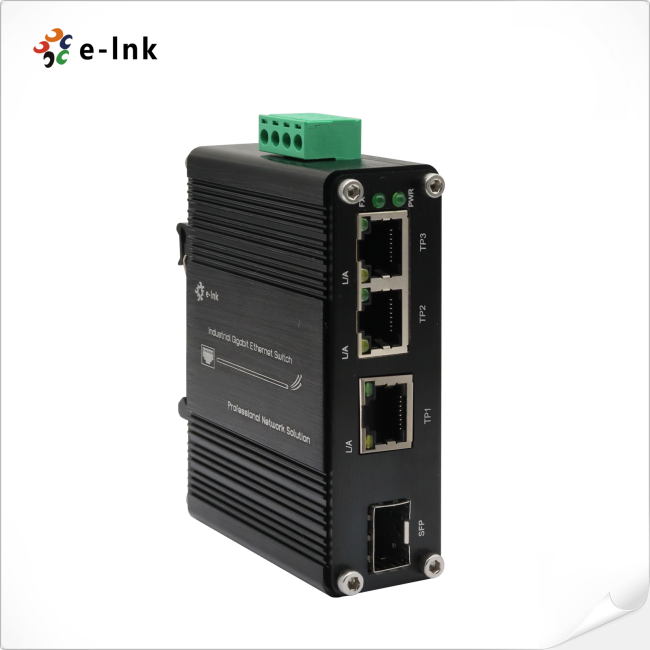

LNK-IMC103G-SFP Series is an industrial-grade Gigabit Ethernet Switch, featuring three 10/100/1000BASE-T copper ports and one 100/1000BASE-X SFP fiber port and packed in an IP40-rated rugged but compact-size case. It is a hardened grade product whose operating temperature range is -40°C to +75°C. The Ethernet port supports both half-duplex and full-duplex mode. Users can use different type of SFP modules (single-mode/multi-mode fiber, 1/2 core) as needed. With its reliable design and ease of use, the product is a great choice for integrating networks consisting of network devices such as IP cameras and wireless access points between remote locations.

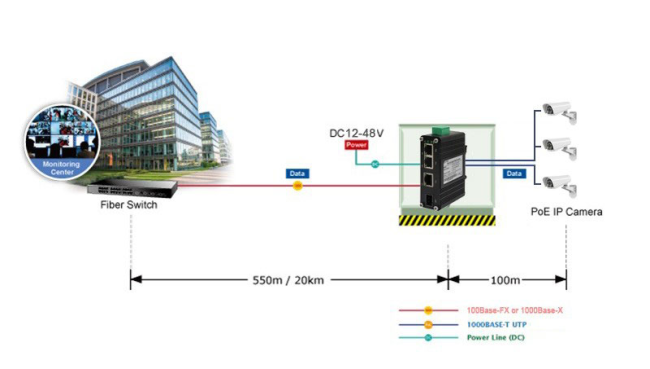

Application

Ordering Information
