Mini Industrial 2-port 10/100/1000Base-T + 2-port 100/1000Base-X SFP Ethernet Switch

Advantages

► 2-port 10/100/1000BASE-T RJ45 with auto MDI / MDI-X function

► 2 SFP Port, 100Base-FX or 1000Base-X dual mode (auto detection)

► Supports Link Fault Pass Through

► Supports Full/Half-duplex, Auto-negotiation

► 9K Bytes Jumbo Frame

► 12~48VDC Redundant Power Supply

► Supports DIN-Rail & Wall-mount installation

► Environmentally hardened -40°C to 75°C
(-40°F to 167°F) operating temperature

Overview

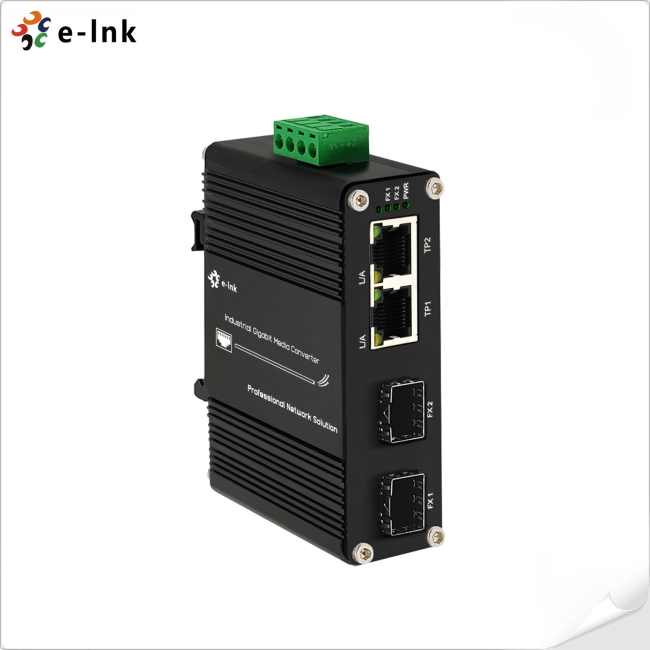

LNK-IMC202G-SFP Series is a DIN Rail type Ethernet Switch that supports external SFP Modules and meets EN55022 standard. It is a hardened grade product whose operating temperature range is -40°C to +75°C. LNK-IMC202G-SFP supports 10/100/1000Base-T and 100/1000Base-X SFP Port. The Ethernet port supports both half-duplex and full-duplex mode. Users can use different type of SFP modules (single-mode/multi-mode fiber, 1/2 core) as needed.

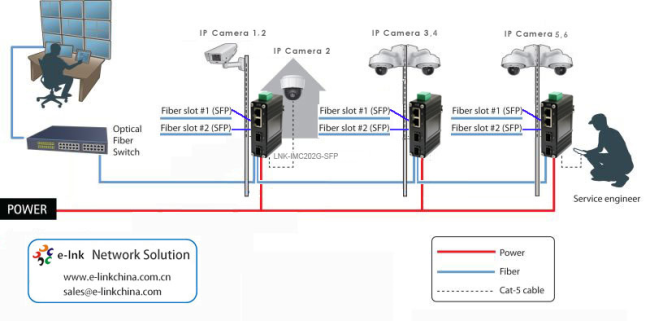

Application

Ordering Information
