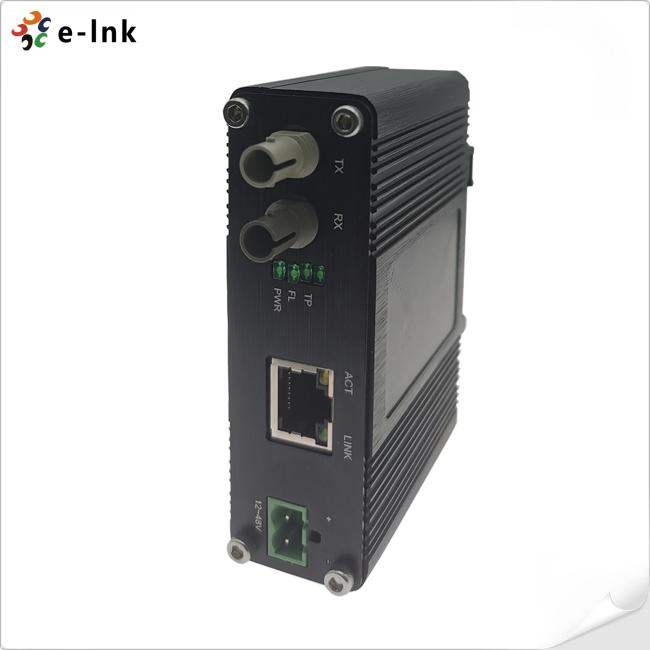

Mini Industrial 10BASE-T to 10BASE-FL Ethernet Media Converter
Mini Industrial 10BASE-T to 10BASE-FL Ethernet Media Converter
Mini Industrial 10BASE-T to 10BASE-FL Ethernet Media Converter Advantages
► Auto-MDI/MDIX
► Complies with 802.3 10Base-T and 10Base-FL standards
► Extends network span from up to 2km(Multi mode)
► Interoperable with other 10Base media converters, 10Base, 10Base-T NICs, hubs or switches
► Provides LEDs for easy network monitoring
► Supporting Quality of Service (QoS), ensuring the transmission of VoIP packets
► Supports 802.3x Flow control
► IEEE 802.3az Energy Efficient Ethernet (EEE)
► Supports Wall-mount and DIN-Rail installation
► -40°C to 80°C (-40°F to 176°F) operating temperature.
(-40°F to 167°F) operating temperature
Mini Industrial 10BASE-T to 10BASE-FL Ethernet Media Converter Overview
E-link Mini Industrial 10Base-T Ethernet to 10Base-FL fiber optical media converter converts your existing 10Base-T Ethernet to a 10Base-FL network with single mode or multimode fiber optic cable up to 20,000 meters.
It’s a hardened product with wide operating temperature range from -40°C to 75°C, and ruggedized aluminum housing. The Ethernet port supports both half-duplex and full-duplex mode. The rugged hardware design ensures that your Ethernet equipment can withstand demanding industrial conditions. The LNK-IMC10FST Series are easy to mount on a DIN rail or in distribution boxes.
Connect 10 Mbps Ethernet segments to fiber segments without using crossover cables. With a E-link 10Mbps Media Converter, you no longer have to deal with mismatched transmit and receive cable pairs. This converter contains a switch that senses the type of circuit connected to the UTP port and automatically configures the port to match. Because the UTP side is autosensing to MDI/MDI-X, you can use either a straight or crossed cable to connect a switch or NIC.
Mini Industrial 10BASE-T to 10BASE-FL Ethernet Media Converter Technical Indexes
|
Ethernet |
|
|
Standards: |
IEEE 802.3 |
|
|
10 Base-T |
|
|
10 Base-FL |
|
|
IEEE 802.3az Energy Efficient Ethernet (EEE) |
|
|
IEEE802.3x Full duplex and flow control |
|
Conversion Means: |
Store and Forward mode or Cut-Through mode |
|
Forward Filter Rate: |
14,880pps (10Mbps) |
|
Wavelength: |
850nm |
|
Buffer Space: |
Built in 128Kb RAM for data buffer |
|
Flow Control: |
Full duplex: flow control; Half duplex: back pressure |
|
Cable Length: |
50/125um or 62.5/125um Multi-mode duplex fiber optic cable for 10Base-FL 100 meters max. for UTP 2000 meters max. for fiber optic Multi-mode |
|
Transmission type: |
Base band |
|
Connection switch: |
2-position 10Base-T switch on RJ-45 side (hub or W/S) |
|
Interface |
|
|
Connector: |
1x RJ45 10Base-T |
|
Optical Port: |
1 x ST 10Base-FL |
Mini Industrial 10BASE-T to 10BASE-FL Ethernet Media Converter ordering information
|
Model |
Description |
|
LNK-IMC10FST-MM |
Mini Industrial 10BASE-T to 10BASE-FL Ethernet Media Converter, multi-mode, 2km, 850nm, ST |
|
Mounting Options |
► Default DIN-Rail Bracket installed; Wall Mount Bracket is included. |
|
Power Options |
► 24W/1A 24VDC Power Supply. Open Wire for Terminal Block |
|
► Power Supply is to be purchased separately. |
