Mini Industrial 10/100/1000Base-T to 100/1000Base-X SFP Ethernet Media Converter
Mini Industrial 10/100/1000Base-T to 100/1000Base-X SFP Ethernet Media Converter
Mini Industrial 10/100/1000Base-T to 100/1000Base-X SFP Ethernet Media Converter Advantages
► 1-port 10/100/1000BASE-T RJ45 with auto MDI / MDI-X function
► 1 SFP Port,100Base-FX or 1000Base-X dual mode (auto detection)
► Supports Full/Half-duplex, Auto-negotiation
► IEEE 802.3az Energy Efficient Ethernet (EEE) compliant
► Extensive LED indicators for network diagnostics
► 12~48VDC Terminal Block Power Input
► Supports DIN-Rail & Wall-mount installation
► Environmentally hardened -40°C to 75°C
(-40°F to 167°F) operating temperature
Mini Industrial 10/100/1000Base-T to 100/1000Base-X SFP Ethernet Media Converter Overview

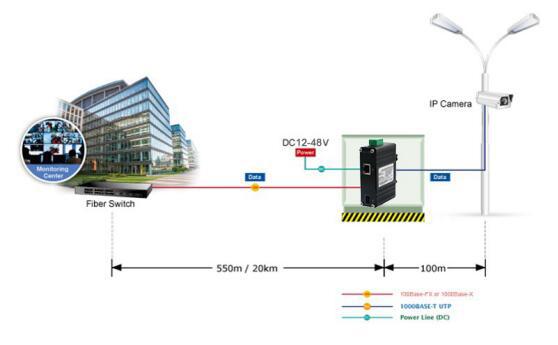

LNK-IMC3012-SFP is a DIN rail type media converter that supports external SFP Modules and meets EN55022 standard. It is a hardened grade product whose operating temperature range is -40°C to +75°C. LNK-IMC3012-SFP supports 10/100/1000Base-T and 100/1000Base-X SFP Port. The Ethernet port supports both half-duplex and full-duplex mode. Users can use different type of SFP modules (single-mode/multi-mode fiber, 1/2 core) as needed.
Mini Industrial 10/100/1000Base-T to 100/1000Base-X SFP Ethernet Media Converter Technical Indexes
|
Ethernet |
|
|
Standards: |
IEEE802.3 10Base-T |
|
|
IEEE802.3u 100Base-TX/FX |
|
|
IEEE802.3ab 1000Base-T |
|
|
IEEE802.3z 1000Base-X |
|
|
IEEE 802.3az Energy Efficient Ethernet (EEE) |
|
Processing Type: |
Store-and-Forward |
|
Forward Filter Rate: |
14,880pps (10Mbps) |
|
|
148,800pps (100Mbps) |
|
|
1,488,000pps (1000Mbps) |
|
Packet Buffer Memory: |
1 Mbit |
|
Max Packet Length: |
9K Bytes |
|
Address Table Size |
2K MAC Addresses |
|
Interface |
|
|
Connector: |
1x RJ45 |
|
Optical Port: |
1 x SFP 1000Base-X or 100Base-FX (auto detection) |
Mini Industrial 10/100/1000Base-T to 100/1000Base-X SFP Ethernet Media Converter ordering information
|
Model |
Description |
|
LNK-IMC3012-SFP |
Hardened 10/1001000BASE-TX to 100/1000BASE-X SFP Ethernet Media Converter |
|
SFP Options |
► SFP option. Please select your SFP on our SFP Options Page (Industrial SFP). |
|
► SFP module is to be purchased separately. |
|
|
Mounting Options |
► Default DIN-Rail Bracket installed; Wall Mount Bracket is included. |
|
Power Options |
► 24W/1A 24VDC Power Supply. Open Wire for Terminal Block |
|
► Power Supply is to be purchased separately. |
