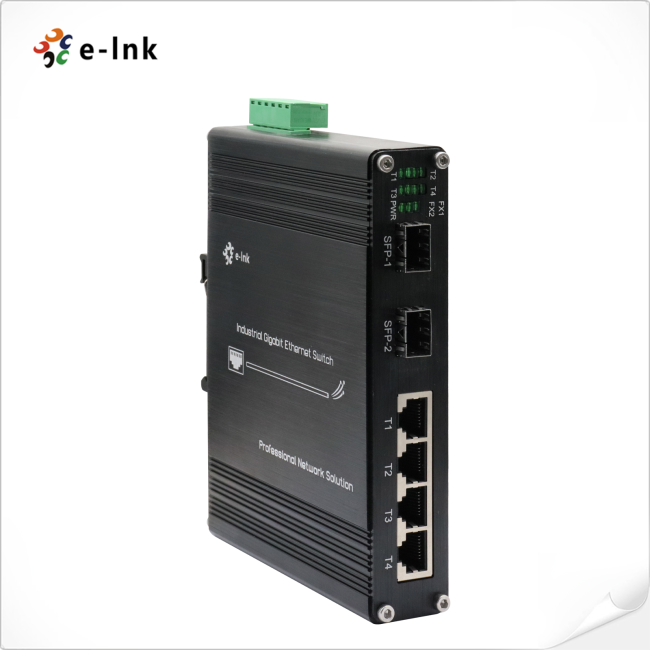

Industrial 4-port 10/100/1000T 802.3bt PoE + 2-port 100/1000X Ethernet Switch
Industrial 4-port 10/100/1000T 802.3bt PoE + 2-port 100/1000X Ethernet Switch
Advantages
► 4 10/100/1000Base-TX + 2 100/1000Base-X
► 10/100/1000Mbps RJ45 Port Supports Full/Half-duplex, Auto-negotiation, Auto MDI/MDIX
► Supports IEEE 802.3bt PoE+ (100W per port)
► Total PoE Power Budget up to 360W maximum
► SFP, SC, FC, ST Optional
► Supports 802.3x Flow Control
► IEEE 802.3az Energy Efficient Ethernet (EEE)
► Redundant Power Inputs
► Supports Wall-mount and DIN-Rail installation
► -40°C to 80°C (-40°F to 176°F) operating temperature
Overview
LNK-IMC204GP100 Series is a 4 ports 10/100/1000Base-TX + 2 port 100/1000Base-FX Hardened PoE switch. The Switch provides 4 port PoE++ function for kinds of Powered Devices to receive power as well as data over the RJ-45 cable. The 100/1000Base-FX supports 1 or 2 core Single-mode or Multi-mode fiber. With its reliable design and ease of use, the product is a great choice for integrating networks consisting of network devices such as IP cameras and wireless access points between remote locations.

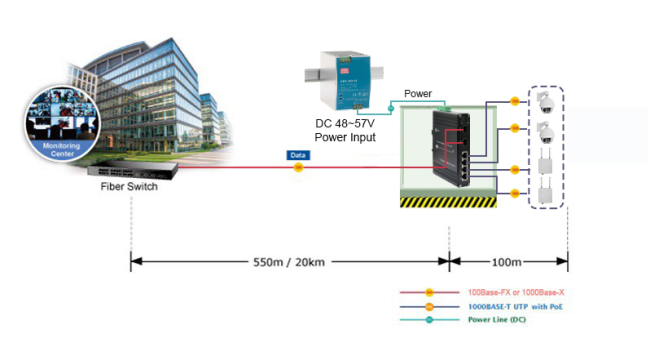

Application
Ordering Information
|
Model |
Description |
|
LNK-IMC204GP100 |
Industrial Ethernet Switch: 4-Port 10/100/1000Base-TX (4-port PoE++) + 2-port 100/1000BASE-X Fiber, Multimode, Dual Fiber, SC, 550m |
|
LNK-IMC204GP100-20 |
Industrial Ethernet Switch: 4-Port 10/100/1000Base-TX (4-port PoE++) + 2-port 100/1000BASE-X Fiber, Single Mode, Dual Fiber, SC, 20KM |
|
LNK-IMC204GPS100-20 |
Industrial Ethernet Switch: 4-Port 10/100/1000Base-TX (4-port PoE++) + 2-port 100/1000BASE-X Fiber, Single Mode, Single Fiber, SC, 20KM |
|
LNK-IMC204GPF100-20 |
Industrial Ethernet Switch: 4-Port 10/100/1000Base-TX (4-port PoE++) + 2-port 100/1000BASE-X Fiber, Single Mode, Single Fiber, FC, 20KM |
|
LNK-IMC204GP100-SFP |
Industrial 4-port 10/100/1000BASE-T(4-port PoE++) + 2-port 100/1000BASE SFP Ethernet Switch |
|
SFP Options |
► SFP option. Please select your SFP on our SFP Options Page |
|
► SFP module is to be purchased separately. |
|
|
Mounting Options |
► Default DIN-Rail Bracket installed; Wall Mount Bracket is included. |
|
Power Options |
► 480W/10A 48VDC DIN-Rail Power Supply. Open Wire for Terminal Block. |
|
► Power Supply is to be purchased separately. |
