12V PoE Splitter
12V PoE Splitter
Advantage
• Support international standard IEEE802.3 af(15.4W)
• Support 10/100Mdata transmission
• PD support 37V-57V voltage transmission, Automatically detects power supply from PSE power supply module
• 12V power output, easy to access Poe network for non-poe terminal
• Support the isolation circuit protection, can effectively protect electrical equipment
• Support the short circuit, over voltage protection
Overview
PoE splitter,it is an economical and practical PoE remote power equipment base on IEEE802.3af/at standard.
It can separate the power and data via cable transmission.Proper matching use with poe switch or PSE injector
which meet standard IEEE802.3af,Provides power and data at the same time for the terminal device does
not support PoE.
Technical Indexes
|
Model |
LNK-SP100 |
|
|
|
|
|
|
|
|
|
|
|
|
Transfer Rate |
10/100M |
|
|
|
|
|
|
|
||||
|
Power |
Input 48V DC /0.35A, Output 12V/1.25A |
||||
|
|
|
|
|
||
|
Standard |
IEEE802.3 af |
15.4W |
|
||
|
|
|
|
|
|
|
|
TRNF |
1/2 + |
3/6 |
- |
4/5 + |
7/8 - |
|
|
|
||||
|
Interface Type |
1 Input RJ45 port, 1 output RJ45 port, 1 DC output |
||||
|
|
|
||||
|
Standard |
IEEE 802.3 I, IEEE 802.3 u, IEEE 802.3 x, IEEE 802.3 af |
||||
|
|
|
|
|
||
|
LED |
Yellow PoE lamp |
|
|
||
|
|
|
|
|||
|
|
Work within -20~50 |
Storage within -30~60 |
|||
|
Environment |
Work within 10%~90% Non-condensing Storage within 5%~95% |
||||
|
|
Non-condensing |
|
|
||
|
|
|
|
|
||
|
Dimension |
93L * 34W *26H |
|
|
||
|
|
|
|
|
|
|
|
Weight |
0.05kg |
|
|
|
|

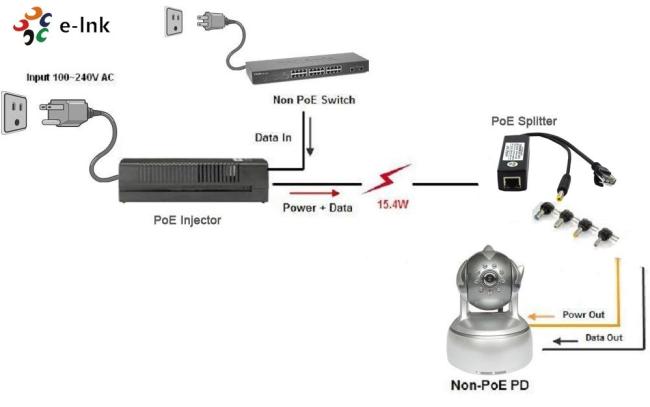

Application
Ordering Information
| Model | Description |
| LNK-SP100 | 10/100M Input IEE802.3af/at Output DC 12V/1.25A |
