Industrial 8-port 10/100/1000Base-T + 2-port 1000BASE-X Ethernet Switch
Industrial 8-port 10/100/1000Base-T + 2-port 1000BASE-X Ethernet Switch
Advantages
► 8 10/100/1000Base-TX + 2 1000Base-FX
► 10/100/1000Mbps RJ45 Port Supports Full/Half-duplex, Auto-negotiation, Auto MDI/MDIX
► SFP, SC, FC, ST Optional
► Supports 802.3x Flow control
► IEEE 802.3az Energy Efficient Ethernet (EEE)
► Redundant Power Inputs
► Supports Wall-mount and DIN-Rail installation
► -40°C to 80°C (-40°F to 176°F) operating temperature
Overview

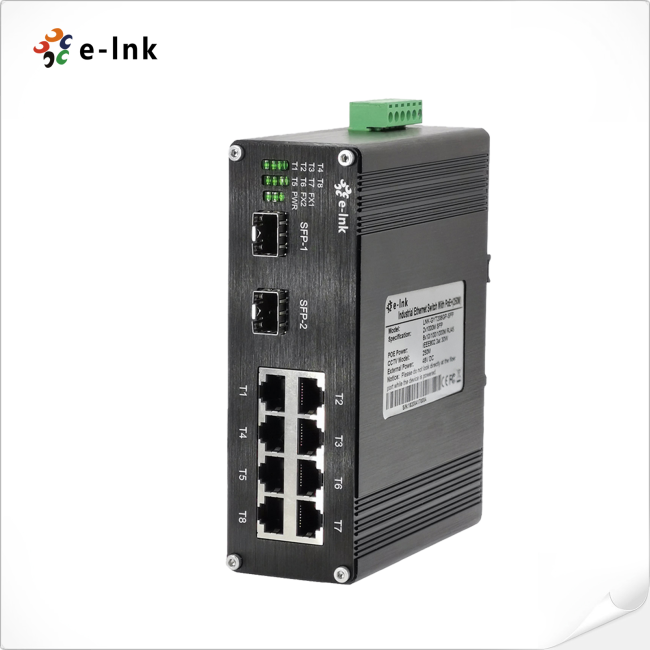

LNK-IMC208G Series is 8 ports 10/100/1000Base-TX + 2 port 1000Base-FX Hardened Ethernet switch. The Switch has 8 TP ports and 2 fiber ports. TP (RJ45) supports 10/100/1000Base-T(X), Full/Half duplex mode, and auto MDI/MDI-X connection; 1000Base-X supports 1 or 2 core Single-mode or Multi-mode fiber. With its reliable design and ease of use, the product is a great choice for integrating networks consisting of network devices such as IP cameras and wireless access points between remote locations.

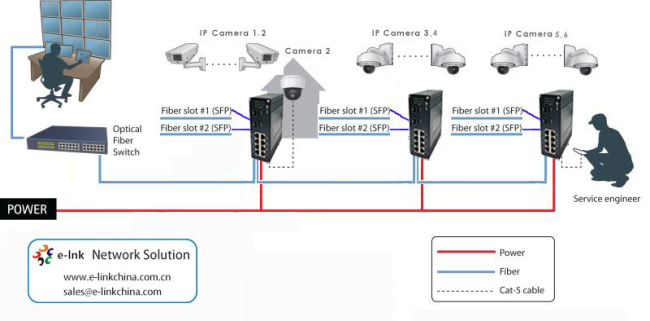

Application
Ordering Information
|
Model |
Description |
|
LNK-IMC208G |
Industrial Ethernet Switch: 8-Port 10/100/1000Base-TX + 2-port 1000BASE-X Fiber, Multimode, Dual Fiber, SC, 550m |
|
LNK-IMC208G-20 |
Industrial Ethernet Switch: 8-Port 10/100/1000Base-TX + 2-port 1000BASE-X Fiber, Single Mode, Dual Fiber, SC, 20KM |
|
LNK-IMC208GS-20 |
Industrial Ethernet Switch: 8-Port 10/100/1000Base-TX + 2-port 1000BASE-X Fiber, Single Mode, Single Fiber, SC, 20KM |
|
LNK-IMC208GF-20 |
Industrial Ethernet Switch: 8-Port 10/100/1000Base-TX + 2-port 1000BASE-X Fiber, Single Mode, Single Fiber, FC, 20KM |
|
LNK-IMC208G-SFP |
Industrial 8-port 10/100/1000BASE-T + 2-port 1000BASE SFP Ethernet Switch |
|
SFP Options |
► SFP option. Please select your SFP on our SFP Options Page |
|
► SFP module is to be purchased separately. |
|
|
Mounting Options |
► Default DIN-Rail Bracket installed; Wall Mount Bracket is included. |
|
Power Options |
► 24W/1A 24VDC DIN-Rail Power Supply. Open Wire for Terminal Block. |
|
► Power Supply is to be purchased separately. |
