Industrial IEEE802.3af/at PoE Splitter with 2-port switch function, output voltage 12VDC
Industrial IEEE802.3af/at PoE Splitter with 2-port switch function,
output voltage 12VDC
Advantage
► Splits power and data from PoE Input
► 1-port PoE Power+ Data input
► 2-port Data output (Switch function)
► 1 DC Out + 1 DC In (5-pin Terminal Block)
► IP40 rugged metal housing and fanless
► Wide operating temperature -40 ~ 80°C
Overview
LNK-SPL01 series is an Industrial Grade, Gigabit Ethernet, PoE Splitter, designed to deliver data,
via RJ-45 Ethernet connector, and electrical power, via screw terminal block, to non-PoE devices.
This device saves the high cost of running separate electrical service to edge devices.
The LNK-SPL01 acts as PD equipment and can be powered by standard PoE IEEE802.3af/at PSE
(Power Source Equipment) switches or work when paired with LNK-INJ301 PoE Injectors. The data
transmission, up to Gigabit speeds, with power output voltages of 12VDC, run simultaneously up to
the Ethernet limit of 100 meters. Simple settings of the LNK-SPL01, make it a plug and play device,
requiring no tools or software configuration, and provides ease of use, with flexible installation and
high reliability.
Technical Indexes
|
Power over Ethernet |
|
|
PoE Standard: |
IEEE 802.3af/at Power over Ethernet |
|
Number of devices that can be powered: |
1 (DC12V) (Vary on device’s power requirement; cannot be over 20 watts.) |
|
Environmental |
|
|
Operating Temperature: |
-40°C to 80°C (-40°F to 176°F) |
|
Storage Temperature: |
-40°C to 85°C (-40°F to 185°F) |
|
Relative Humidity: |
5% to 95% non-condensing |
|
MTBF: |
>200,000hrs |
|
Electrical and Mechanical |
|
|
Power Output: |
20W 12VDC (Terminal Block) |
|
Power Consumption: |
25W Max. |
|
LED Indicators: |
|
|
PWR: |
Power ON |
|
POE/12V: |
PSE Power IN, 12VDC Power OUT |
|
Dimensions (WxDxH): |
95 x 70 x 30 mm |
|
Weight: |
0.25Kg |
|
Casing: |
Aluminum Case |
|
Mounting Options: |
DIN-Rail / Wall-mount |

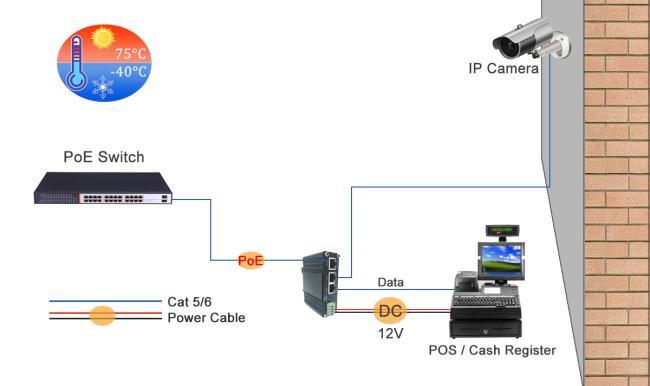

Application
Ordering Information
|
Model |
Description |
|
LNK-SPL01 |
Industrial PoE splitter with 2-port Switch function: 1-port PoE+ In + 2-port Ethernet Data Out (switch function), maximum output of 20 W at 12VDC, Support DIN-Rail mounting and Wall mounting installation, -40 to 80°C operating temperature |
|
Mounting Options |
► Default DIN-Rail Bracket installed; Wall Mount Bracket is included. |
|
Power Options |
► 20W 12VDC output with 2-pin open wire terminal block |
