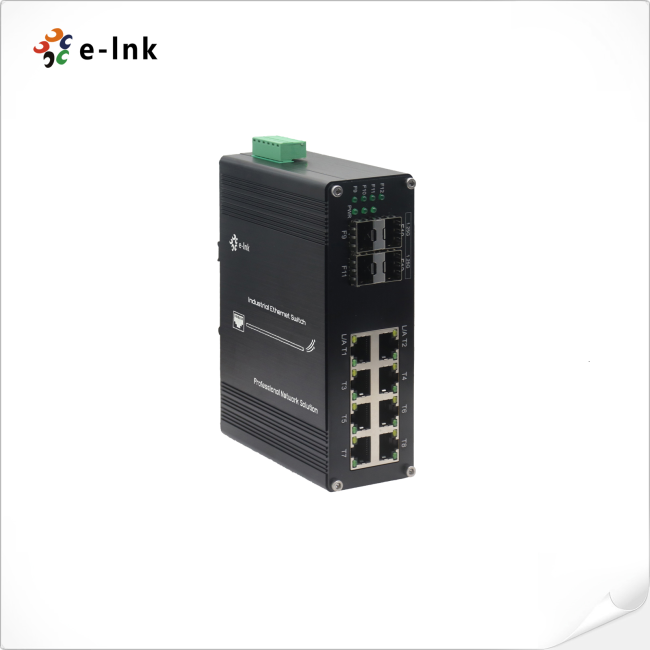

Industrial 8-Port 10/100/1000T + 4-Port 1000X SFP Ethernet Switch
Industrial 8-Port 10/100/1000T + 4-Port 1000X SFP Ethernet Switch
Advantages
► Support 8x10/100/1000Base-T + 4x1000Base-X SFP
► 10/100/1000Mbps RJ45 Port supports Full/Half-duplex, Auto-negotiation, Auto MDI/MDIX
► IEEE 802.3az Energy Efficient Ethernet (EEE)
► IP40 Aluminum Case
► Supports DIN-Rail installation
► 12-48V DC Power Input
► 8W Max Power Consumption
► Aluminum Case
► Weight: 0.55kg
► Size: 149 x 114 x 50 mm
► -40°C to 80°C (-40°F to 176°F) operating temperature.
Overview
LNK-IMC408G Series is the 8-port 10/100/1000Base-T + 4-port 1000Base-X SFP hardened Ethernet switch. The Switch has 8 Gigabit Ethernet ports and 4 SFP fiber ports. TP (RJ45) supports 10/100/1000Base-T(X), Full/Half duplex mode, and auto MDI/MDI-X connection; 1000Base-X supports 1 or 2 core Single-mode or Multi-mode fiber. With its reliable design and ease of use, the product is a great choice for integrating networks consisting of network devices such as IP cameras and wireless access points between remote locations.

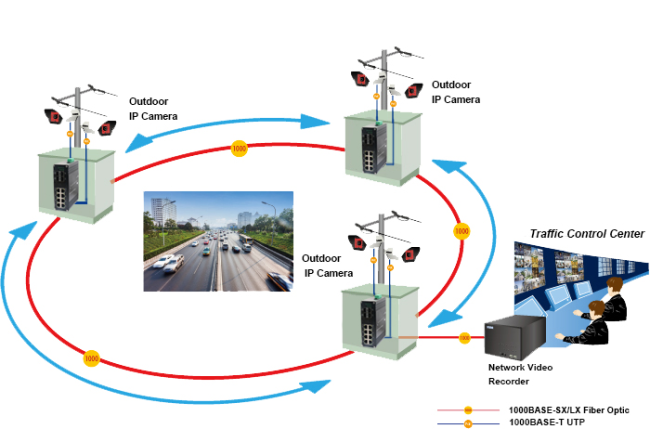

Application
Ordering Information
|
Model |
Description |
|
LNK-IMC408G |
Industrial 8-Port 10/100/1000T + 4-Port 1000X SFP Ethernet Switch |
|
SFP Options |
► SFP option. Please select your SFP on our SFP Options Page |
|
► SFP module is to be purchased separately. |
|
|
Mounting Options |
► Default DIN-Rail Bracket installed |
|
Power Options |
► DIN-Rail Power Supply. Open Wire for Terminal Block. |
|
► Power Supply is to be purchased separately. |
