Industrial L2 Managed Ethernet Switch + 16-Port 10/100/1000T + 4-Port 1000X SFP Features
► Support 16x10/100/1000Base-T + 4x1000Base-X SFP
► 10/100/1000Mbps RJ45 Port supports Full/Half-duplex, Auto-negotiation, Auto MDI/MDIX
► Support connecting USB-C port for easy management, without the need to access the RS232 serial port at all
► 10K Bytes Jumbo Frame
► IEEE 802.3az Energy Efficient Ethernet (EEE)
► IP40 Aluminum Case
► Supports DIN-Rail installation
►-40°C to 80°C (-40°F to 176°F) operating
Industrial L2 Managed Ethernet Switch + 16-Port 10/100/1000T + 4-Port 1000X SFP Overview

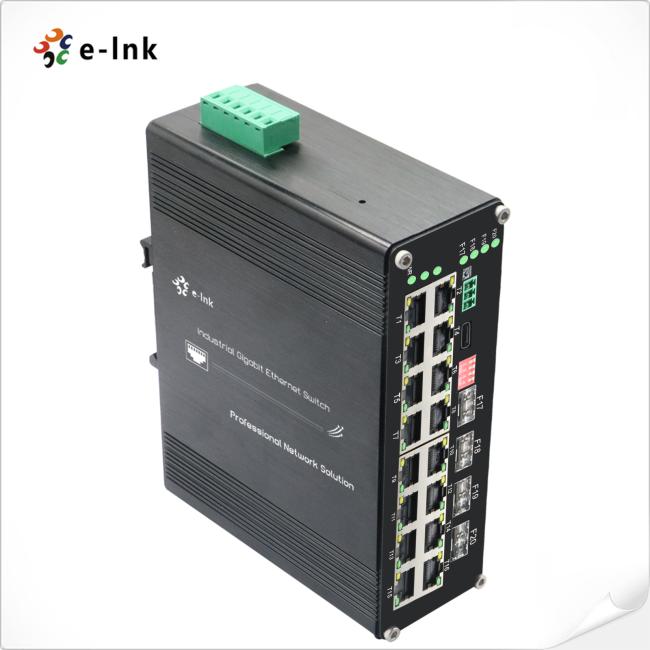

ETH-DIMC2416M series is the L2+ managed 16-port 10/100/1000Base-T + 4-port 1000Base-X SFP hardened Ethernet switch. The Switch has 16 TP ports and 4 fiber ports. The TP (RJ45) supports 10/100/1000Base-T(X), Full/Half duplex mode, and auto MDI/MDI-X connection; the 1000Base-X SFP port supports 1 or 2 core Single-mode or Multi-mode fiber. With its reliable design and ease of use, the product is a great choice for integrating networks consisting of network devices such as IP cameras and wireless access points between remote locations.
Industrial L2 Managed Ethernet Switch + 16-Port 10/100/1000T + 4-Port 1000X SFP Technical Indexes
|
Interface |
||||
|
Connector: |
16 x RJ45 |
|||
|
RS485: |
1 x RS485 (Optional) |
|||
|
Optical Port: |
4 x 1000Base-X SFP |
|||
|
USB-C: |
1 x USB-C (for Management) |
|||
|
RS485 Serial Interface (Optional) |
||||
|
Physical interface |
Industrial standard 3-pin screw terminal |
|||
|
Data type |
1Ch RS485 Bi-Direction |
|||
|
RS-485 signals |
Data+, Data-, GND |
|||
|
Serial port line distance (copper) |
1000 meters |
|||
|
Baud rate |
0 ~ 800kbps |
|||
|
Environmental |
||||
|
Operating Temperature: |
-40°C to 80°C (-40°F to 176°F) |
|||
|
Storage Temperature: |
-40°C to 85°C (-40°F to 185°F) |
|||
|
Relative Humidity: |
5% to 95% non-condensing |
|||
|
MTBF |
> 200,000 hrs |
|||
|
Electrical and Mechanical |
||||
|
Input Power: |
12~48VDC, Redundant Power (6-pin Terminal Block) |
|||
|
Power Consumption: |
8W Max. |
|||
|
Protection: |
||||
|
Power Input Overload: |
Automatic Resettable |
|||
|
Reverse Polarity: |
Present |
|||
|
DIP Switch |
||||
|
4-digit DIP switch function
|
DIP |
Function |
Settings |
|
|
SW 1 |
VLAN |
ON - Enabled |
OFF - Disabled |
|
|
SW 2 |
Ring Management |
ON - Enabled |
OFF - Disabled |
|
|
SW 3 |
Reserved |
ON - Reserved |
OFF - Reserved |
|
|
SW 4 |
Reserved |
ON - Reserved |
OFF - Reserved |
|
|
LED Indicators: |
||||
|
PWR: |
Power Status |
|||
|
Ethernet (Per Port): |
Link/Activity |
|||
|
Fiber: |
Gigabit SFP Port: F17~F20 |
|||
|
Dimensions (WxDxH): |
155 x 115 x 85 mm |
|||
|
Weight: |
1.2KG |
|||
|
Casing: |
Aluminum Case |
|||
|
Mounting Options: |
DIN-Rail mount |
|||
Industrial L2 Managed Ethernet Switch + 16-Port 10/100/1000T + 4-Port 1000X SFP Ordering Information
|
Model |
Description |
|
ETH-DIMC2416M |
Industrial L2+ 16-Port 10/100/1000T + 4-Port 1000X SFP Managed Ethernet Switch |
|
SFP Options |
SFP option. Please select your SFP on our SFP Options Page |
|
SFP module is to be purchased separately. |
|
|
Mounting Options |
Default DIN-Rail Bracket installed |
|
Power Options |
DIN-Rail Power Supply. Open Wire for Terminal Block. |
|
Power Supply is to be purchased separately. |
