Industrial 8-port 10/100/1000M/2.5G BASE-TX + 2-port 1.25G/2.5G/10G SFP+ BASE-FX Ethernet Switch
Industrial 8-Port 10/100/1000M/2.5G + 2-Port 1.25G/2.5G/10G
SFP+ Managed Ethernet Switch
Advantage
► Support 8x10/100/1000M/2.5G Base-T + 2x1.25G/2.5G/10G SFP+ Base-X SFP
► 10/100/1000M/2.5Gbps RJ45 Port supports Full/Half-duplex, Auto-negotiation, Auto MDI/MDIX
► Support connecting USB-C port for easy management, without the need to access the RS232 serial port at all
► IEEE 802.3az Energy Efficient Ethernet (EEE)
► IP40 Aluminum Case
► Supports DIN-Rail installation
► -40°C to 80°C (-40°F to 176°F) operating temperature
Overview
LNK-IMC208-2.5GM-SFP+ is the managed 8-port 10/100/1000M/2.5G Base-T + 2-port 1.25G/2.5G/10G SFP+
Base-X hardened Ethernet switch. The Switch has 8 TP ports and 2 fiber ports. The TP (RJ45) supports
10/100/1000M/2.5G Base-T(X), Full/Half duplex mode, and auto MDI/MDI-X connection; the SFP Base-X port
supports 1 or 2 core Single-mode or Multi-mode fiber. With its reliable design and ease of use, the product is a
great choice for integrating networks consisting of network devices such as IP cameras and wireless access
points between remote locations.
Technical Indexes
|
Interface |
|
|
Ethernet Port: |
8 x 10/100/1000M/2.5G RJ45 |
|
Optical Port: |
2 x 1.25G/2.5G/10G SFP |
|
Management Port |
1 x USB-C |
|
Environmental |
|
|
Operating Temperature: |
-40°C to 80°C (-40°F to 176°F) |
|
Storage Temperature: |
-40°C to 85°C (-40°F to 185°F) |
|
Relative Humidity: |
5% to 95% non-condensing |
|
MTBF |
> 200,000 hrs |
|
Electrical and Mechanical |
|
|
Input Power: |
12~48V DC, Redundant Power (6-pin Terminal Block) |
|
Power Consumption: |
8W Max |
|
Protection: |
|
|
Power Input Overload: |
Automatic Resettable |
|
Reverse Polarity: |
Present |

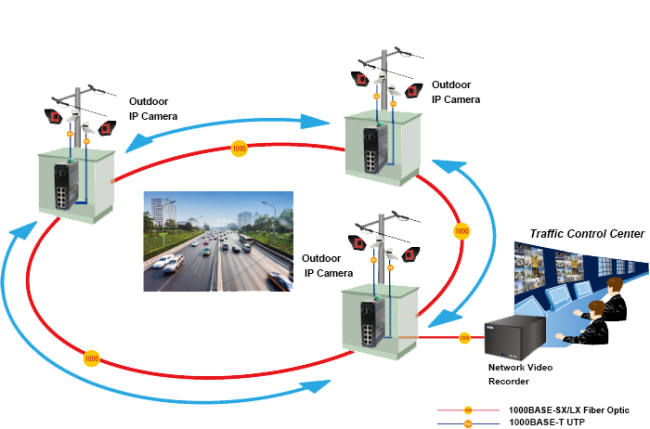

Application
Ordering Information
