Industrial Hardened 10/100/1000Base-T to 1000Base-X SFP PoE Media Converter with PoE Reset Function

Advantages

· Converts 10/100/1000Base-T to 1000Base-FX

· Supports IEEE802.3at PoE+(30W)

· Advanced features: PoE Power Reset function

· Supports Full/Half duplex

· Supports external 1000Base-X SFP

· Supports Auto MDI/MDI-X

· Supports DIN-Rail & Wall-mount installation

· Extensive LED indicators for network diagnostics

· Environmentally hardened -40°C to 80°C
(-40°F to 176°F) operating temperature

Overview

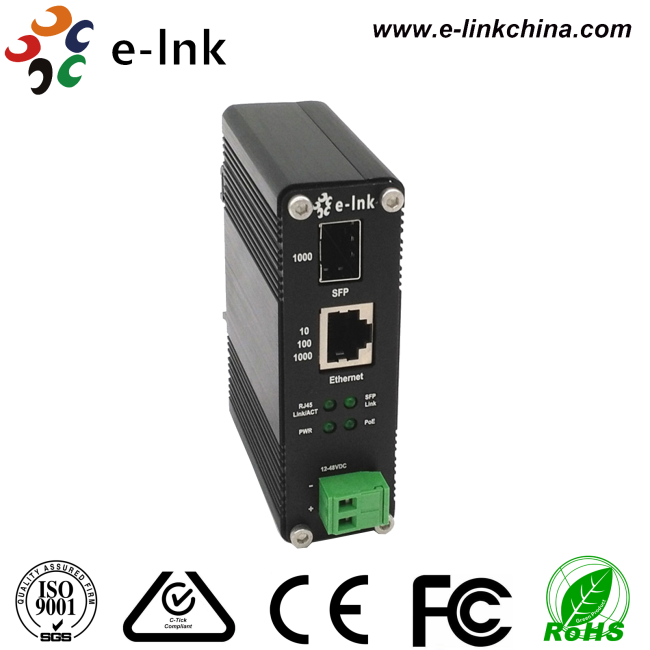

LNK-IMC1000P-SFP is a DIN rail type media converter that supports external SFP Modules and meets EN55022 standard. The Ethernet port support high power PoE (Power Sourcing Equipment) which complies with IEEE802.3at standard. It is a hardened grade product whose operating temperature range is -40°C to +80°C. LNK-IMC1000P-SFP supports 10/100/1000M Ethernet Port and 1000M SFP Port. The Ethernet port supports both half-duplex and full-duplex mode. Users can use different type of SFP modules (single-mode/multi-mode fiber, 1/2 core) as needed. In addition, with PoE reset function, a loss of Fiber RX will disable PSE power output on the UTP port for 2 seconds to allow remote device to re-initialize.

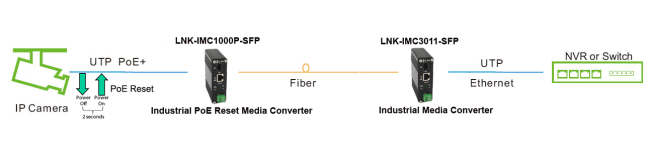

  Application

Ordering Information
