Industrial 8-Port 10/100/1000M/2.5G 802.3bt PoE + 2-Port 10G/2.5G/1.25G SFP Managed Ethernet Switch
Industrial 8-Port 10/100/1000M/2.5G 802.3bt PoE + 2-Port 10G/2.5G/1.25G
SFP Managed Ethernet Switch
Advantage
► Support 8x10/100/1000M/2.5G Base-T + 2x10G/2.5G/1.25G Base-X SFP
► 10/100/1000M/2.5Gbps RJ45 Port supports Full/Half-duplex, Auto-negotiation, Auto MDI/MDIX
► Support connecting USB-C port for easy management, without the need to access the RS232 serial port at all
► Supports DIN-Rail installation
► -40°C to 80°C (-40°F to 176°F) operating temperature
Overview
LNK-IMC208-2.5GP90M-SFP+ is the managed 8-port 10/100/1000M/2.5G Base-T 802.3bt PoE + 2-port
10G/2.5G/1.25G Base-X SFP hardened Ethernet switch. The Switch has 8 TP ports and 2 fiber ports.
The TP (RJ45) supports 10/100/1000M/2.5G Base-T(X), Full/Half duplex mode, and auto MDI/MDI-X
connection; 10G/2.5G/1.25G Base-X SFP port supports 1 or 2 core Single-mode or Multi-mode fiber.
With its reliable design and ease of use, the product is a great choice for integrating networks consisting
of network devices such as IP cameras and wireless access points between remote locations.
Technical Indexes
|
Interface |
|
|
Ethernet Port: |
8 x 10/100/1000M/2.5G RJ45 |
|
Optical Port: |
2 x 1.25G/2.5G/10G SFP |
|
Management Port |
1 x USB-C |
|
PoE (Power over Ethernet) |
|
|
Standard: |
IEEE 802.3bt Power over Ethernet Plus Plus |
|
|
IEEE 802.3at Power over Ethernet Plus |
|
|
IEEE 802.3af Power over Ethernet |
|
Port: |
RJ45 |
|
Power Pin Assignment |
1/2(+), 3/6(-) or 4/5(+), 7/8(-) |
|
PoE Budget: |
90-watt each PoE Port, Total up to 360-watt PoE budget |
|
Environmental |
|
|
Operating Temperature: |
-40°C to 80°C (-40°F to 176°F) |
|
Storage Temperature: |
-40°C to 85°C (-40°F to 185°F) |
|
Relative Humidity: |
5% to 95% non-condensing |
|
MTBF |
> 200,000 hrs |
|
Electrical and Mechanical |
|
|
Input Power: |
48~57V DC, Redundant Power (6-pin Terminal Block) |
|
Power Consumption: |
8W Max.(PoE in Use<360W) |

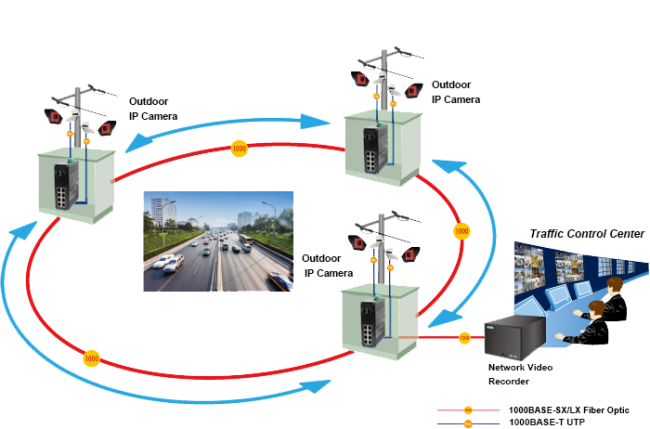

Application
Ordering Information
|
Model |
Description |
|
LNK-IMC208-2.5GP90M-SFP+ |
Industrial 8-Port 10/100/1000M/2.5G 802.3bt PoE + 2-Port 10G/2.5G/1.25G SFP Managed Ethernet Switch |
|
SFP Options |
► SFP module is to be purchased separately. |
|
Mounting Options |
► Default DIN-Rail Bracket installed |
|
Power Options |
|
|
► Power Supply is to be purchased separately. |
